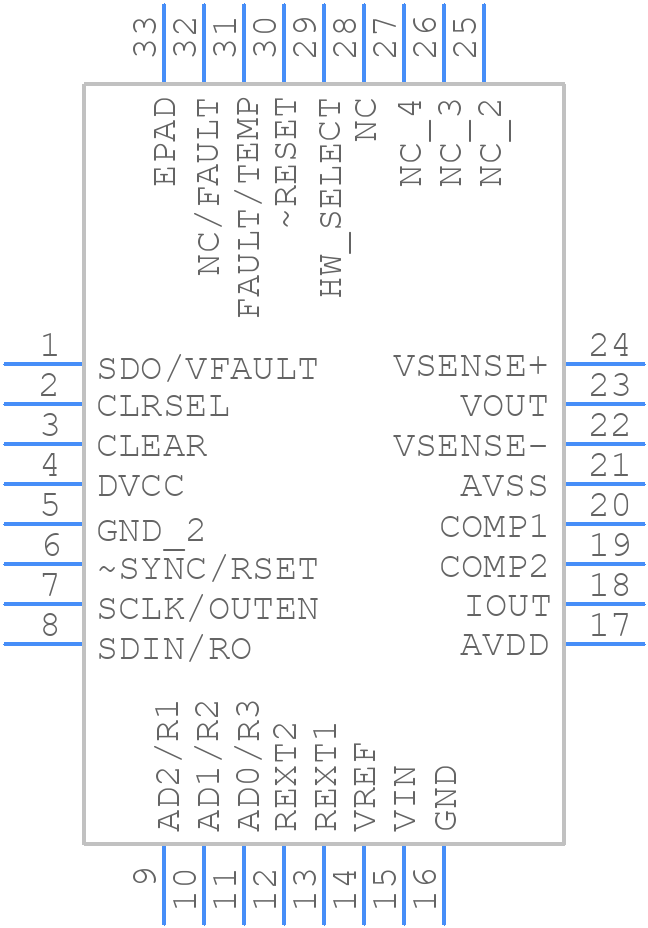

AD5750BCPZ-REEL - Analog Devices

AD5750BCPZ-REEL Details

• Manufacturer Part Number:

  AD5750BCPZ-REEL

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  5 X 5 MM, ROHS COMPLIANT, MO-220VHHD2, LFCSP-32

• Pin Count:

  32

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Built-in Protections:

  TRANSIENT; OVER CURRENT

• Driver Number of Bits:

  1

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  S-XQCC-N32

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Current-Max:

  0.024 A

• Output Peak Current Limit-Nom:

  0.015 A

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  6.2 mA

• Supply Voltage-Max:

  24 V

• Supply Voltage-Min:

  12 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  2.7 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
