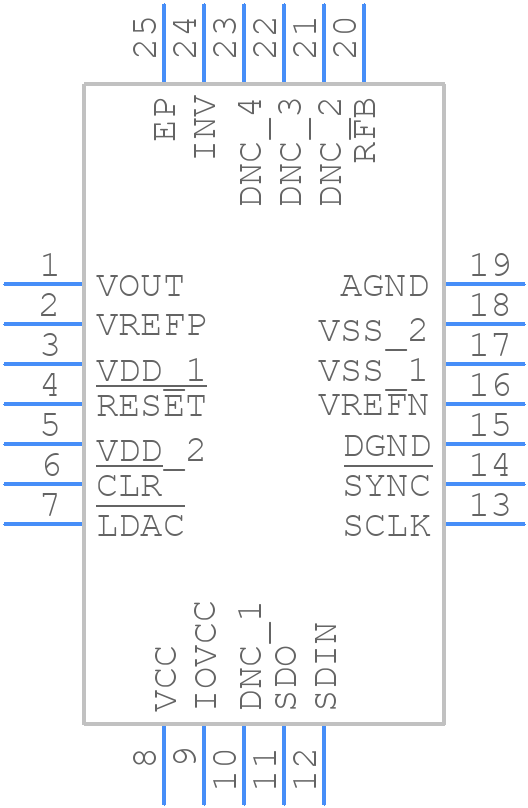

AD5760ACPZ - Analog Devices

AD5760ACPZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AD5760ACPZ?
  The recommended power-up sequence is to apply the analog supply voltage (AVCC) first, followed by the digital supply voltage (DVCC), and then the clock signal. This ensures proper initialization of the device.
• How do I optimize the performance of the AD5760ACPZ in terms of noise and distortion?
  To optimize performance, ensure that the analog and digital grounds are separated, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use a clock frequency that is a multiple of the sampling frequency to minimize jitter.
• What is the maximum output current of the AD5760ACPZ, and how does it affect the output voltage?
  The maximum output current of the AD5760ACPZ is 10 mA. If the output current exceeds this limit, the output voltage may droop, affecting the accuracy of the DAC. Ensure that the output current is within the specified limit to maintain accurate output voltages.
• How do I handle the synchronization of multiple AD5760ACPZ devices in a multi-channel system?
  To synchronize multiple AD5760ACPZ devices, use a common clock signal and ensure that the devices are configured to use the same clock frequency. Additionally, use a common SYNC signal to synchronize the devices and ensure that they update their outputs simultaneously.
• What is the effect of temperature on the AD5760ACPZ's performance, and how can I compensate for it?
  Temperature changes can affect the AD5760ACPZ's gain and offset. To compensate for temperature effects, use an external temperature sensor to monitor the temperature and adjust the output voltage accordingly. Alternatively, use a temperature-compensated voltage reference to minimize temperature-related errors.
