AD5761RBRUZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-BIT 1LSB, 5ppm Reference

Download AD5761RBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

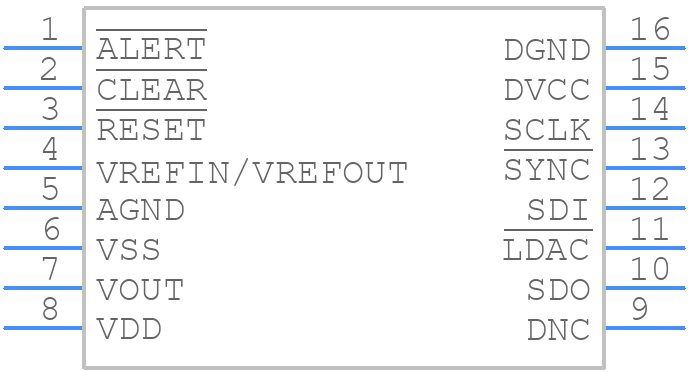

AD5761RBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5761RBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
click to zoom
3D Models
AD5761RBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
click to zoom

AD5761RBRUZ-RL7 Details

  • Manufacturer Part Number:

    AD5761RBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.5 V

  • Analog Output Voltage-Min:

    -10.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    9 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5761RBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To ensure accuracy and stability, use a high-quality voltage reference, such as the ADR435, and a low-noise power supply. Also, ensure that the output voltage is properly filtered and decoupled, and that the device is operated within its specified temperature range.
  • The recommended method for calibrating the AD5761RBRUZ-RL7 is to use the internal calibration feature, which can be initiated through the SPI interface. This feature allows the device to self-calibrate and adjust its internal voltage references and gain settings.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, operate the device within its specified temperature range and avoid overheating, which can affect its performance and reliability.
  • To minimize EMI and RFI, use a shielded enclosure, keep the device away from sources of electromagnetic interference, and use a low-pass filter on the output voltage. Also, ensure that the device is properly grounded and that the PCB layout is designed to minimize radiation.
