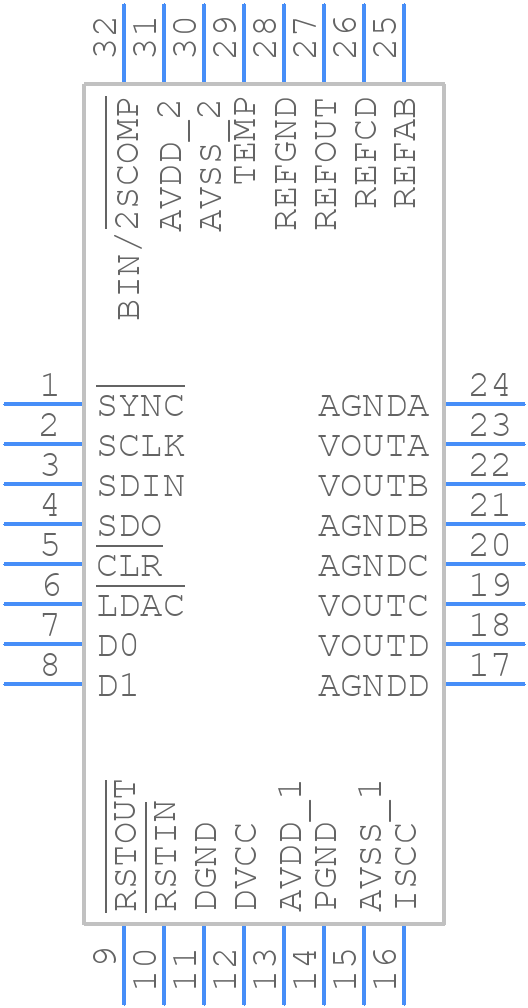

AD5764RCSUZ - Analog Devices

AD5764RCSUZ Details

• Manufacturer Part Number:

  AD5764RCSUZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

• Package Description:

  ROHS COMPLIANT, PLASTIC, MS-026ABA, TQFP-32

• Pin Count:

  32

• Manufacturer Package Code:

  SU-32-2

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Output Voltage-Max:

  10.5263 V

• Analog Output Voltage-Min:

  -10.5263 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  OFFSET BINARY, 2'S COMPLEMENT BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-PQFP-G32

• JESD-609 Code:

  e3

• Length:

  7 mm

• Linearity Error-Max (EL):

  0.0015%

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -13.5 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TQFP

• Package Equivalence Code:

  QFP32,.35SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Settling Time-Max:

  10 µs

• Settling Time-Nom (tstl):

  8 µs

• Supply Voltage-Nom:

  13.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
