AD582KD - Analog Devices

AD582KD Details

• Manufacturer Part Number:

  AD582KD

• Source Url Status Check Date:

  2013-05-01 14:56:14.782

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

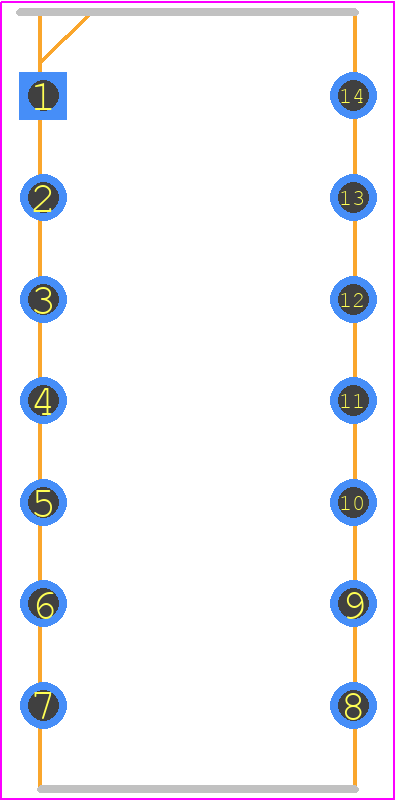

• Part Package Code:

  DIP

• Package Description:

  DIP-14

• Pin Count:

  14

• Manufacturer Package Code:

  D-14

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Acquisition Time-Nom:

  25 µs

• Amplifier Type:

  SAMPLE AND HOLD CIRCUIT

• Analog Input Voltage-Max:

  18 V

• Analog Input Voltage-Min:

  -18 V

• JESD-30 Code:

  R-CDIP-T14

• JESD-609 Code:

  e0

• Length:

  19.304 mm

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  4.5 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  JFET

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn63Pb37)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
