AD5930YRUZ-REEL7 - Analog Devices

Description: Direct Digital Synthesizer 50MHz 1-DAC 10bit Serial Automotive 20-Pin TSSOP T/R

Download AD5930YRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

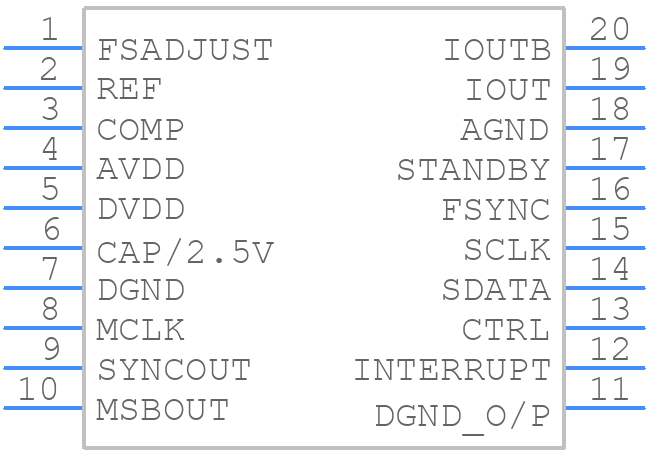

AD5930YRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5930YRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20_1
click to zoom
3D Models
AD5930YRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - TSSOP20_1
click to zoom

AD5930YRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5930YRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES WITH 5V NOMINAL SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5930YRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD5930YRUZ-REEL7 can be found in the AD5930 evaluation board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD5930 datasheet, which highlights key considerations for signal routing, grounding, and decoupling.
  • Calibration of the AD5930YRUZ-REEL7 involves a two-point calibration process, where the device is calibrated for gain and offset using a known impedance standard. The calibration process is described in detail in the AD5930 datasheet, and Analog Devices also provides a calibration guide and software tools to facilitate the process.
  • The AD5930YRUZ-REEL7 has a maximum frequency range of 100 kHz, but the actual frequency range may be limited by the specific application and the quality of the external components used. The device can be configured to operate at lower frequencies, but the maximum frequency is limited by the internal clock and the analog-to-digital converter (ADC) sampling rate.
  • Yes, the AD5930YRUZ-REEL7 can be used for multi-frequency impedance measurements. The device has a built-in frequency generator that can be programmed to generate multiple frequencies, and the impedance measurement can be performed at each frequency. However, the device can only measure impedance at one frequency at a time, and the frequency must be changed between measurements.
  • The power consumption of the AD5930YRUZ-REEL7 depends on the operating mode and the frequency of operation. In normal operation, the device consumes around 15 mA of current from a 3.3 V supply. In standby mode, the current consumption is reduced to around 1 μA. The power consumption can be further reduced by using the device's power-down mode.
