AD5934YRSZ - Analog Devices

Description: AD5934YRSZ, Direct Digital Synthesizer 12-Bit 250ksps, 16-Pin SSOP

Download AD5934YRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

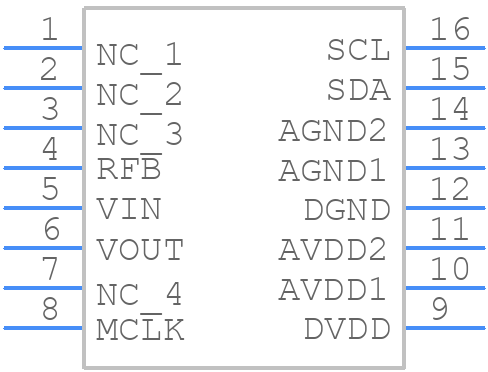

AD5934YRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5934YRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-16
click to zoom
3D Models
AD5934YRSZ - Analog Devices - 3D model - Small Outline Packages - RS-16
click to zoom

AD5934YRSZ Details

  • Manufacturer Part Number:

    AD5934YRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RS-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

AD5934YRSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital power supplies (DVCC and OVCC). This ensures that the analog and digital circuits are powered up in the correct order.
  • The gain of the AD5934 can be optimized by adjusting the gain resistors (RFB1 and RFB2) and the feedback capacitors (CFB1 and CFB2). The optimal values depend on the specific application and the desired gain and bandwidth.
  • The AD5934 can operate up to 250 kHz, but the maximum frequency range depends on the specific application and the desired performance. The device can be configured to operate at lower frequencies for improved noise performance or at higher frequencies for faster measurement times.
  • Calibration involves applying a known impedance to the device and adjusting the gain and offset registers to achieve accurate measurements. The calibration process is described in the datasheet and application notes.
  • The AD5934 is specified to operate over a temperature range of -40°C to +125°C. Temperature changes can affect the device's gain, offset, and noise performance. Calibration and temperature compensation may be necessary to achieve accurate measurements over the entire temperature range.
