AD594CDZ footprint, schematic symbol and 3D model by Analog Devices

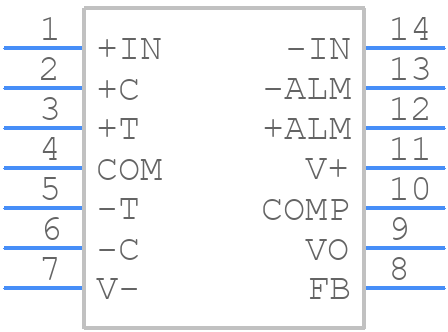

Symbol

click to zoom

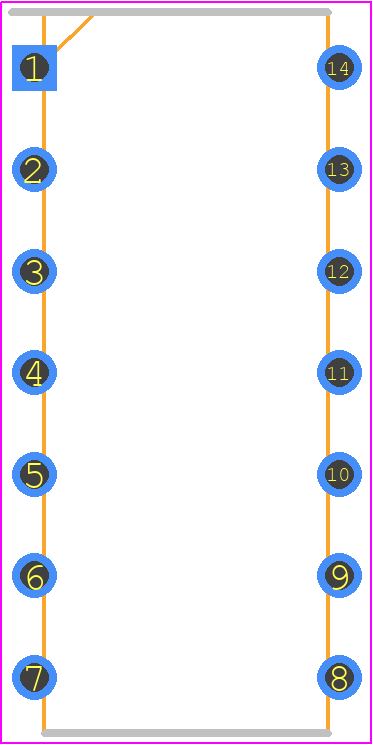

PCB Footprints

AD594CDZ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-14_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD594CDZ
Part Number AD594CDZ
Manufacturer Analog Devices
Pin Count 14
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - D-14_1
Released Date Nov 3, 2015
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD594CDZ Details

Manufacturer Part Number:
AD594CDZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
TO-116, 14 PIN
Pin Count:
14
Manufacturer Package Code:
D-14
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Amplifier Type:
THERMOCOUPLE AMPLIFIER
JESD-30 Code:
R-CDIP-T14
JESD-609 Code:
e4
Length:
17.78 mm
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
3.55 mm
Supply Voltage Limit-Max:
36 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Gold (Au)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

AD594CDZ Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
To optimize the performance of the ADC, ensure that the analog input signal is properly filtered and buffered, and that the ADC clock frequency is set to the recommended value. Additionally, ensure that the ADC is operated within its specified temperature range.
The internal voltage regulators in the AD594CDZ provide a stable voltage supply to the internal analog and digital circuits, allowing the device to operate from a single external power supply.
Yes, the AD594CDZ can be used in a multi-channel application by using multiple devices, each connected to a separate channel. However, it's recommended to use a single device with multiple channels, such as the AD594CDZ, which has multiple analog input channels.
The AD594CDZ can be interfaced with a microcontroller using the SPI interface. The microcontroller can be used to configure the AD594CDZ, read data from the ADC, and control the device's operating modes.

Trust Checks

Community Provided

System Verified

Community Approved

AD594CDZ Overview

Use the download button to access the AD594CDZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD594, or try a keyword search, such as Other Amplifiers
