AD595ADZ footprint, schematic symbol and 3D model by Analog Devices

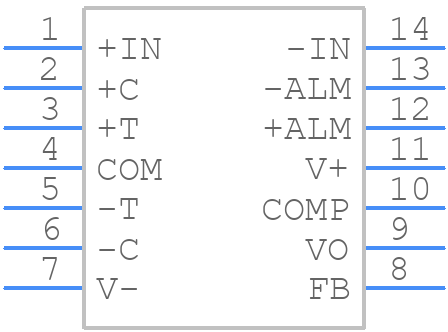

Symbol

click to zoom

PCB Footprints

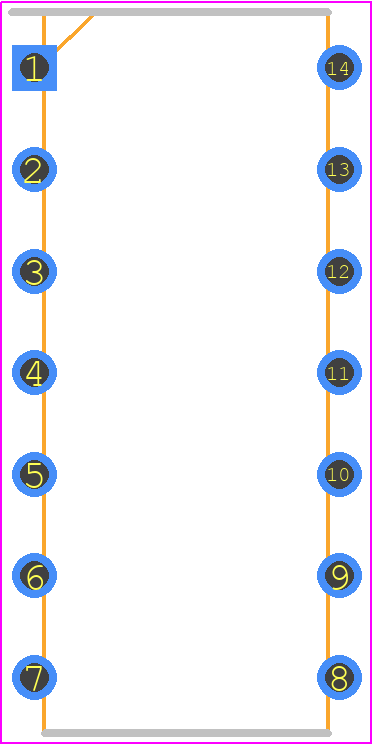

AD595ADZ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-14_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD595ADZ
Part Number AD595ADZ
Manufacturer Analog Devices
Pin Count 14
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - D-14_1
Released Date Nov 3, 2015
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD595ADZ Details

Manufacturer Part Number:
AD595ADZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
TO-116, 14 PIN
Pin Count:
14
Manufacturer Package Code:
D-14
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Amplifier Type:
THERMOCOUPLE AMPLIFIER
JESD-30 Code:
R-CDIP-T14
JESD-609 Code:
e4
Length:
17.78 mm
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
3.55 mm
Supply Voltage Limit-Max:
36 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Gold (Au)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

AD595ADZ Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input voltage (VIN). This ensures that the internal voltage regulator is fully powered up before the input voltage is applied.
To ensure accurate temperature measurements, it is essential to provide a stable power supply, minimize noise and interference, and ensure good thermal contact between the sensor and the object being measured. Additionally, calibration and linearization may be necessary to achieve high accuracy.
The maximum cable length for the AD595ADZ depends on the specific application and the noise environment. As a general guideline, cable lengths up to 100 feet (30 meters) are possible, but longer cables may be susceptible to noise and interference. Shielded cables and proper termination techniques can help minimize these effects.
Yes, the AD595ADZ is designed to operate in high-vibration environments. However, it is essential to ensure that the sensor is properly mounted and secured to prevent mechanical stress and damage. Additionally, the sensor's thermal response time may be affected by high-vibration environments.
The AD595ADZ has a non-linear temperature response, which can be compensated for using a look-up table or a polynomial equation. The datasheet provides a temperature error curve that can be used to correct for non-linearity. Additionally, some microcontrollers and signal conditioning circuits can perform this compensation internally.
