Part Image

AD595AQ - Analog Devices

Description: AD595AQ, Temperature Sensor ±3 °C 4.5 → 5.5 V 14-Pin CDIP

Download AD595AQ Model

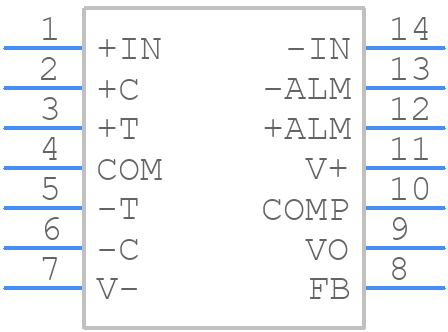

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

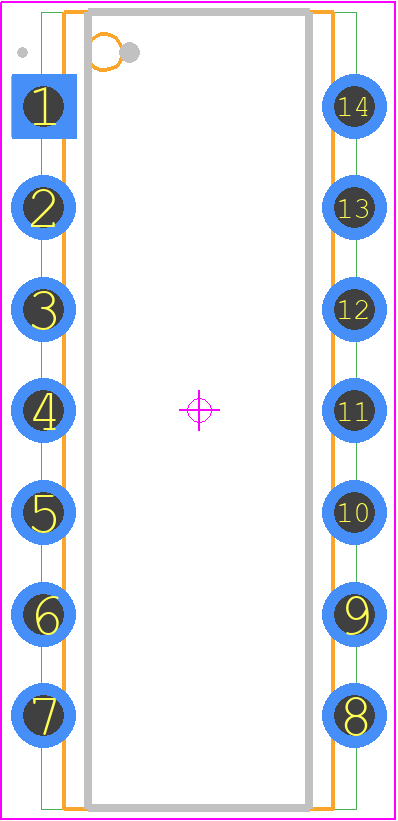

AD595AQ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-14
click to zoom
3D Models
AD595AQ - Analog Devices  - 3D model - Ceramic Dual-In-Line Packages - Q-14
click to zoom

AD595AQ Details

  • Manufacturer Part Number:

    AD595AQ

  • Source Url Status Check Date:

    2013-05-01 14:56:15.078

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    CERDIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    Q-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    THERMOCOUPLE AMPLIFIER

  • JESD-30 Code:

    R-GDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.55 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.283 mm

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD595AQ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VEE, and then the input signal. This ensures proper operation and prevents damage to the device.
  • To ensure accurate temperature measurement, it's essential to provide a stable voltage supply, minimize noise and interference, and use a high-precision voltage reference. Additionally, calibrate the device according to the datasheet recommendations.
  • The maximum allowable input voltage for the AD595AQ is ±30V. Exceeding this voltage can damage the device.
  • Yes, the AD595AQ can be used in a ratiometric configuration, where the output voltage is proportional to the input voltage and the supply voltage. This configuration can provide improved accuracy and noise rejection.
  • The output offset voltage of the AD595AQ can be trimmed using the offset null pins (pins 1 and 8). Connect a potentiometer between the offset null pins and adjust it to minimize the output offset voltage.
