AD595CDZ footprint, schematic symbol and 3D model by Analog Devices

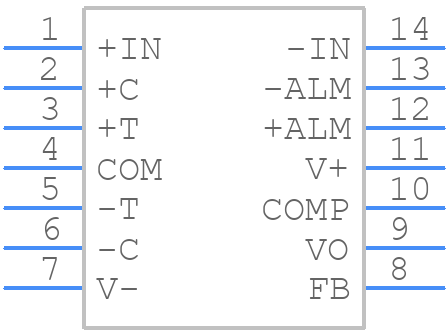

Symbol

click to zoom

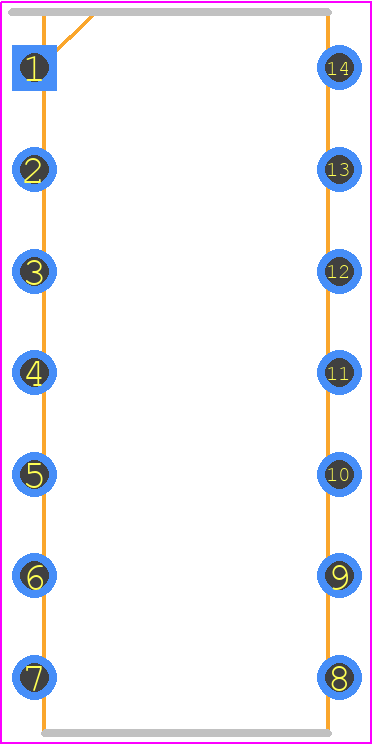

PCB Footprints

AD595CDZ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-14_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD595CDZ
Part Number AD595CDZ
Manufacturer Analog Devices
Pin Count 14
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - D-14_1
Released Date Nov 3, 2015
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD595CDZ Details

Manufacturer Part Number:
AD595CDZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
TO-116, 14 PIN
Pin Count:
14
Manufacturer Package Code:
D-14
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Amplifier Type:
THERMOCOUPLE AMPLIFIER
JESD-30 Code:
R-CDIP-T14
JESD-609 Code:
e4
Length:
17.78 mm
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
3.55 mm
Supply Voltage Limit-Max:
36 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Gold (Au)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

AD595CDZ Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
To ensure accurate temperature measurements, it is essential to provide a stable and accurate voltage reference, minimize noise and interference, and use a high-precision thermistor or other temperature sensor.
The maximum cable length for the AD595CDZ depends on the specific application and the type of cable used. As a general rule, the cable length should be kept as short as possible to minimize noise and signal degradation. A maximum cable length of 10 feet (3 meters) is recommended.
The AD595CDZ is designed to operate with a 15V power supply, but it can also be used with a 5V power supply with some limitations. The output voltage range will be reduced, and the device may not be able to provide the full 10mV/°C output swing.
The AD595CDZ does not require calibration, as it is a pre-calibrated device. However, the user may need to perform a zero-point calibration to adjust for any offset errors in the system.
