AD597AH footprint, schematic symbol and 3D model by Analog Devices

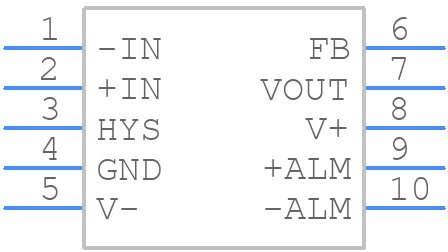

Symbol

click to zoom

PCB Footprints

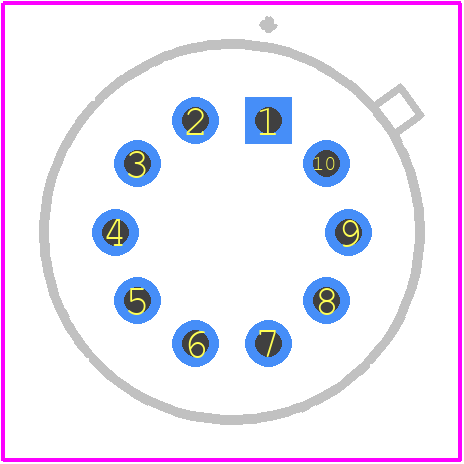

AD597AH - Analog Devices PCB footprint - Other - Other - 10-Pin Metal Header Package [TO-100] (H-10A)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD597AH
Part Number AD597AH
Manufacturer Analog Devices
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 10-Pin Metal Header Package [TO-100] (H-10A)
Released Date Jul 2, 2024
Last Modified Date May 10, 2025 9:53 AM UTC
Pinout / Pin List Click Here (Member Only)

AD597AH Details

Manufacturer Part Number:
AD597AH
Source Url Status Check Date:
2013-05-01 14:56:15.089
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
SMT
Package Description:
METAL CAN, TO-100, 10 PIN
Pin Count:
10
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
O-MBCY-W10
JESD-609 Code:
e0
Neg Supply Voltage-Max (Vsup):
-15 V
Neg Supply Voltage-Min (Vsup):
-2.5 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
METAL
Package Code:
TO-100
Package Shape:
ROUND
Package Style:
CYLINDRICAL
Qualification Status:
Not Qualified
Supply Voltage-Max (Vsup):
15 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Temperature Grade:
MILITARY
Terminal Finish:
TIN LEAD
Terminal Form:
WIRE
Terminal Position:
BOTTOM

AD597AH Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VCC first, followed by VEE, and then the analog input signal. This ensures proper operation and prevents damage to the device.
To minimize noise and interference, keep the analog input traces short and away from digital signals, use a ground plane, and decouple the power supplies with capacitors. Additionally, use a shielded enclosure and keep the device away from high-frequency sources.
The maximum allowable input voltage for the AD597AH is ±15V, but it's recommended to keep the input voltage within ±10V to ensure optimal performance and prevent damage to the device.
Calibration involves adjusting the offset and gain of the device to match the specific application requirements. This can be done using external resistors and potentiometers, or through software calibration using a microcontroller or DSP.
The typical settling time for the AD597AH is around 10-15 microseconds, but this can vary depending on the specific application, input signal, and output load.

Trust Checks

Expert Contribution

System Verified

Community Approved

AD597AH Overview

Use the download button to access the AD597AH schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD597, or try a keyword search, such as Other Analog ICs
