AD597AHZ footprint, schematic symbol and 3D model by Analog Devices

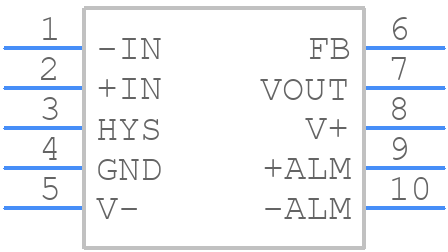

Symbol

click to zoom

PCB Footprints

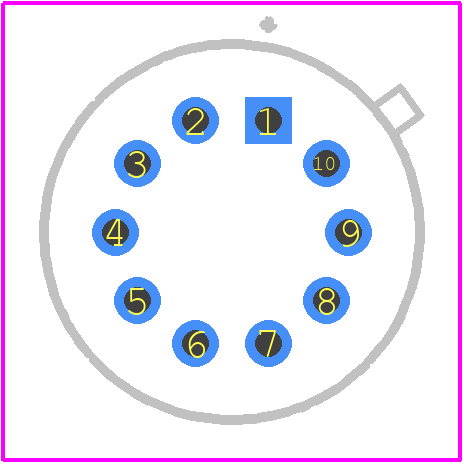

AD597AHZ - Analog Devices PCB footprint - Other - Other - 10-Pin Metal Header Package [TO-100] (H-10A)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD597AHZ
Part Number AD597AHZ
Manufacturer Analog Devices
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 10-Pin Metal Header Package [TO-100] (H-10A)
Released Date Jul 2, 2024
Last Modified Date May 10, 2025 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

AD597AHZ Details

Manufacturer Part Number:
AD597AHZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
SMT
Package Description:
METAL CAN, TO-100, 10 PIN
Pin Count:
10
Manufacturer Package Code:
H-10-1
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
O-MBCY-W10
JESD-609 Code:
e4
Neg Supply Voltage-Max (Vsup):
-15 V
Neg Supply Voltage-Min (Vsup):
-2.5 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
METAL
Package Code:
TO-100
Package Shape:
ROUND
Package Style:
CYLINDRICAL
Qualification Status:
Not Qualified
Supply Voltage-Max (Vsup):
15 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Temperature Grade:
MILITARY
Terminal Finish:
Gold (Au)
Terminal Form:
WIRE
Terminal Position:
BOTTOM

AD597AHZ Frequently Asked Questions (FAQs)

A good PCB layout for the AD597AHZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane can help to minimize noise and ensure optimal performance.
To ensure the accuracy of the temperature measurement, it is essential to calibrate the AD597AHZ using a precision temperature source, such as a thermocouple or a platinum RTD. Additionally, ensuring good thermal contact between the device and the heat source, and using a low-noise, low-thermal-resistance interface material can help to improve accuracy.
The maximum cable length that can be used with the AD597AHZ depends on the type of cable used and the noise environment. As a general rule, using a shielded twisted-pair cable with a maximum length of 10 meters (33 feet) can help to minimize noise and ensure accurate temperature measurement.
Yes, the AD597AHZ is designed to operate in high-vibration or high-shock environments. However, it is essential to ensure that the device is properly mounted and secured to prevent mechanical stress and damage. Additionally, using a ruggedized PCB design and a secure connector system can help to ensure reliable operation in harsh environments.
To troubleshoot common issues with the AD597AHZ, start by checking the power supply voltage, ensuring that it is within the recommended range. Next, verify that the device is properly connected and configured. If issues persist, check for noise sources, such as electromagnetic interference or radio-frequency interference, and ensure that the device is properly shielded. If the issue still persists, consult the datasheet and application notes for further troubleshooting guidance.
