AD598AD - Analog Devices

Description: AD598AD, Clock Conditioner LVDT Differential, Single Ended 20-Pin SBCDIP

Download AD598AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

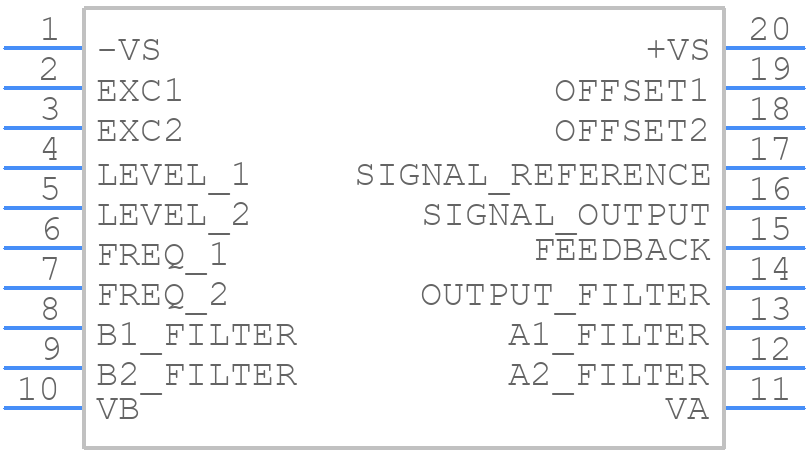

AD598AD - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD598AD - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20-Pin PDIP
click to zoom
3D Models
AD598AD - Analog Devices - 3D model - Dual-In-Line Packages - 20-Pin PDIP
click to zoom

AD598AD Details

  • Manufacturer Part Number:

    AD598AD

  • Source Url Status Check Date:

    2013-05-01 14:56:15.091

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    D-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Interface IC Type:

    SIGNAL CONDITIONER

  • JESD-30 Code:

    R-CDIP-T20

  • JESD-609 Code:

    e0

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    2.39 mm

  • Supply Voltage-Min:

    13 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD598AD Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD598AD involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accurate temperature measurement with the AD598AD, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be mounted in a way that minimizes thermal coupling to the surrounding environment.
  • The maximum cable length for the AD598AD's analog output signal depends on the specific application and the noise environment. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 10 feet) to minimize noise pickup and signal degradation.
  • Yes, the AD598AD can be used in a ratiometric configuration, where the output voltage is proportional to the input voltage. This configuration can provide improved accuracy and reduced sensitivity to supply voltage variations.
  • The AD598AD's output voltage offset and gain errors can be handled by using external calibration resistors or by using a microcontroller to perform software calibration. Additionally, the device's output voltage can be adjusted using an external voltage reference.
