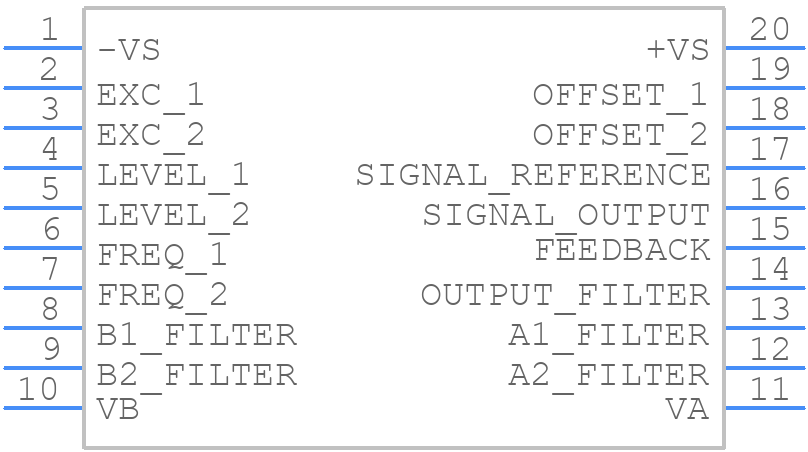

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD598SD/883B
- Part Number AD598SD/883B
- Manufacturer Analog Devices
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - 20-Pin Sized Brazed Ceramic DIP_
- Released Date Nov 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
