AD600JRZ-RL - Analog Devices

Description: Dual, Low Noise, Wideband Variable Gain Amplifier, 0 dB To +40 dB Gain

Download AD600JRZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

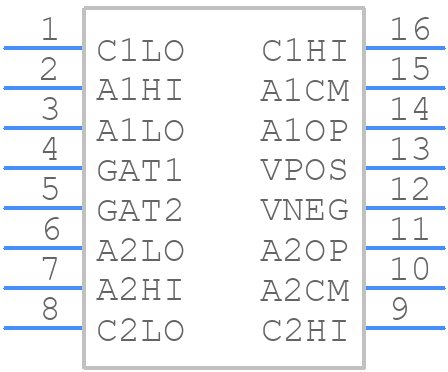

Symbol
AD600JRZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD600JRZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)/*
click to zoom
3D Models
AD600JRZ-RL - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)/*
click to zoom

AD600JRZ-RL Details

  • Manufacturer Part Number:

    AD600JRZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -4.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD600JRZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD600JRZ-RL. Ensure a solid ground plane, keep analog and digital traces separate, and use a star-grounding configuration to minimize noise and EMI. Refer to Analog Devices' application notes and layout guidelines for more information.
  • The choice of external components, such as resistors, capacitors, and inductors, depends on the specific application and frequency range. Consult the datasheet and application notes for recommended component values and types. Additionally, consider factors like parasitic inductance, capacitance, and resistance when selecting components.
  • The maximum power dissipation of the AD600JRZ-RL is dependent on the operating conditions, such as temperature and supply voltage. Refer to the datasheet's thermal characteristics and power dissipation sections to determine the maximum power dissipation for your specific application.
  • To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and consider the device's electromagnetic radiation characteristics. Additionally, consult Analog Devices' EMC guidelines and application notes for more information.
  • The recommended operating temperature range for the AD600JRZ-RL is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. Consult the datasheet's operating conditions section for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD600JRZ-RL Overview

Use the download button to access the AD600JRZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD600, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
