AD602ARZ-R7 - Analog Devices

Description: Dual, Low Noise, Wideband Variable Gain Amplifier, -10 dB To +30 dB Gain

Download AD602ARZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

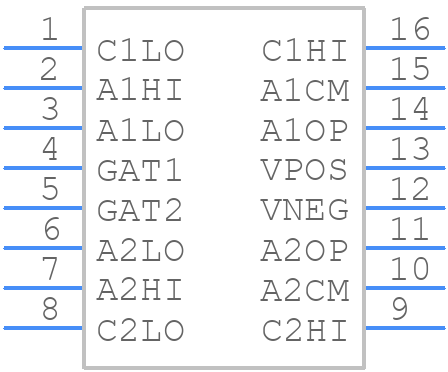

Symbol
AD602ARZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD602ARZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16) *--
click to zoom
3D Models
AD602ARZ-R7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16) *--
click to zoom

AD602ARZ-R7 Details

  • Manufacturer Part Number:

    AD602ARZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -4.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    14 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD602ARZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD602ARZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The AD602ARZ-R7 is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked, and the ambient temperature is within the specified range. Also, consider the thermal resistance of the package and the PCB when designing the system.
  • The recommended input impedance for the AD602ARZ-R7 is 1 kΩ or higher. This ensures that the input signal is not attenuated and the device operates within its specified gain range.
  • Yes, the AD602ARZ-R7 can be used with a single-supply voltage, but the input signal must be biased to the midpoint of the supply voltage. Additionally, the output voltage swing will be limited to the supply voltage minus the output voltage swing of the device.
  • To reduce noise and EMI, use a low-noise power supply, decouple the power supply pins with capacitors, and use a shielded enclosure. Additionally, keep the input and output traces short and away from each other, and use a common-mode choke or ferrite bead on the input signal lines.
