- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD602JR
- Part Number AD602JR
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RW-16 (SOIC)
- Released Date May 21, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD602JR Details
-
Manufacturer Part Number:
AD602JR
-
Source Url Status Check Date:
2013-05-01 14:56:15.171
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
MS-013AA, SOIC-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
AD602JR Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD602JR involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
The AD602JR is specified to operate from -40°C to +125°C. Ensure that the device is properly heat-sinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the package when designing the system.
-
The recommended input impedance for the AD602JR is 1 kΩ or higher. This ensures that the input signal is not attenuated and the device operates within its specified gain range.
-
Yes, the AD602JR can be used as a single-ended to differential converter. However, this requires additional external components and careful layout to ensure common-mode rejection and minimize noise.
-
Common-mode voltage issues can be troubleshooted by checking the input signal levels, ensuring proper grounding and shielding, and verifying that the device is operating within its specified common-mode voltage range. Also, check for any DC offsets or noise on the input signals.
Trust Checks
Community Provided
System Verified
Community Approved
AD602JR Overview

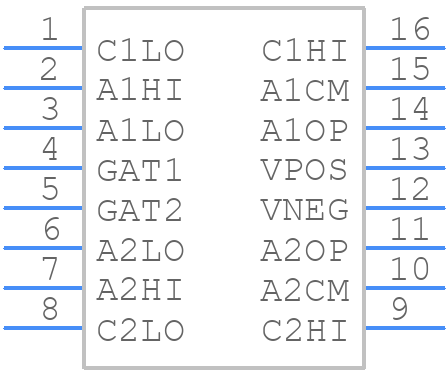

Use the download button to access the AD602JR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD602,
or try a keyword search, such as Other Analog ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
