- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD602JRZ-RL
- Part Number AD602JRZ-RL
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - AD602JRZ-RL
- Released Date May 21, 2022
- Last Modified Date Jul 18, 2024 7:19 AM UTC
- Pinout / Pin List Click Here (Member Only)
AD602JRZ-RL Details
-
Manufacturer Part Number:
AD602JRZ-RL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
LEAD FREE, MS-013AA, SOIC-16
-
Pin Count:
16
-
Manufacturer Package Code:
RW-16
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
AD602JRZ-RL Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD602JRZ-RL involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
The AD602JRZ-RL is specified to operate from -40°C to +125°C. Ensure that the device is properly heat-sinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the package when designing the system.
-
The recommended input impedance for the AD602JRZ-RL is 1 kΩ or higher. This ensures that the input signal is not attenuated and the device operates within its specified gain range.
-
Yes, the AD602JRZ-RL can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC - 1.5V to VCC + 0.5V. Ensure that the input signal is within this range to maintain optimal performance.
-
To reduce noise and EMI, use a low-noise power supply, decouple the power supply pins with capacitors, and use a shielded enclosure. Also, consider using a common-mode choke or a ferrite bead on the input lines to filter out high-frequency noise.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
AD602JRZ-RL Overview

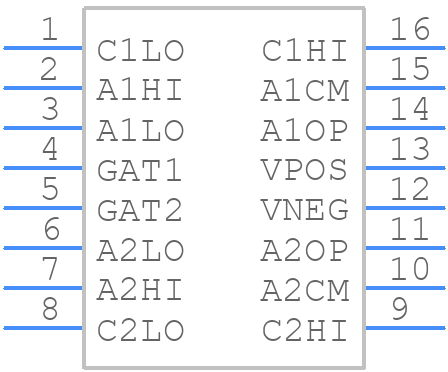

Use the download button to access the AD602JRZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD602,
or try a keyword search, such as Other Signal Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
