- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD603ARZ-REEL7
- Part Number AD603ARZ-REEL7
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD603ARZ-REEL7 Details
-
Manufacturer Part Number:
AD603ARZ-REEL7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
ROHS COMPLIANT, MS-012AA, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
AD603ARZ-REEL7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD603ARZ-REEL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 0.1uF and 10uF capacitors, respectively. The input common-mode voltage should be set to VPOS/2, and the output should be terminated with a 1kΩ resistor to VPOS/2.
-
The maximum power dissipation of the AD603ARZ-REEL7 is 1.3W, which is calculated based on the maximum junction temperature of 150°C and the thermal resistance of the package. Proper heat sinking and thermal management are essential to prevent overheating.
-
Yes, the AD603ARZ-REEL7 can be used in a single-supply configuration, but it requires additional circuitry to level-shift the input signal. A voltage divider or an op-amp can be used to level-shift the input signal to the desired common-mode voltage.
-
To troubleshoot common issues with the AD603ARZ-REEL7, start by checking the PCB layout and ensuring that the device is properly biased and terminated. Check for oscillations by monitoring the output with an oscilloscope, and verify that the input signal is within the specified range. If issues persist, consult the datasheet and application notes for guidance.
Trust Checks
System Verified
AD603ARZ-REEL7 Overview

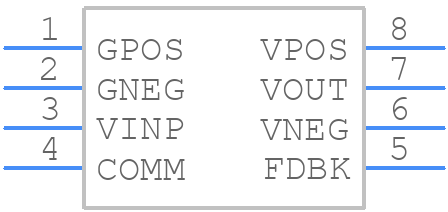

Use the download button to access the AD603ARZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD603,
or try a keyword search, such as Other Signal Circuits
