AD605ARZ-RL - Analog Devices

Description: Dual, Low Noise, Single-Supply Variable Gain Amplifier

Download AD605ARZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

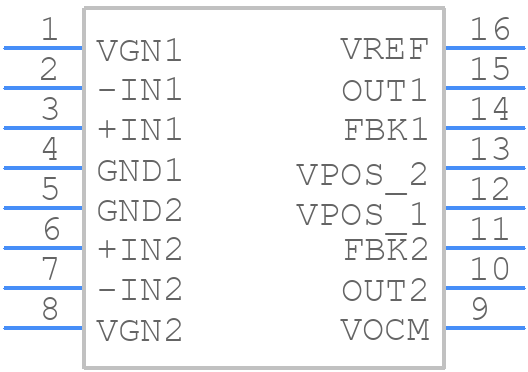

AD605ARZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD605ARZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 lead soicee
click to zoom
3D Models
AD605ARZ-RL - Analog Devices - 3D model - Small Outline Packages - 16 lead soicee
click to zoom

AD605ARZ-RL Details

  • Manufacturer Part Number:

    AD605ARZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-012-AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    23 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD605ARZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD605ARZ-RL involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AD605ARZ-RL requires calibration for optimal performance. This can be done by using the CAL pin to adjust the gain and offset of the device. A calibration routine can be implemented using a microcontroller or a dedicated calibration circuit.
  • The AD605ARZ-RL is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • The AD605ARZ-RL is a surface-mount device and can be susceptible to vibration-induced failures. However, the device can be used in high-vibration environments if proper mounting and PCB design techniques are employed, such as using a rigid PCB and securing the device with a sturdy mechanical fastener.
  • Common issues with the AD605ARZ-RL can be troubleshooted by checking the power supply voltage, ensuring proper grounding and decoupling, and verifying the input and output signal integrity. A scope or spectrum analyzer can be used to identify noise or oscillation issues, and the user should consult the datasheet and application notes for specific troubleshooting guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD605ARZ-RL Overview

Use the download button to access the AD605ARZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD605, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
