Part Image

AD605ARZ - Analog Devices

Description: AD605ARZ, Dual Voltage Controlled Amplifier 20dB CMRR, 5V 16-Pin SOIC

Download AD605ARZ Model

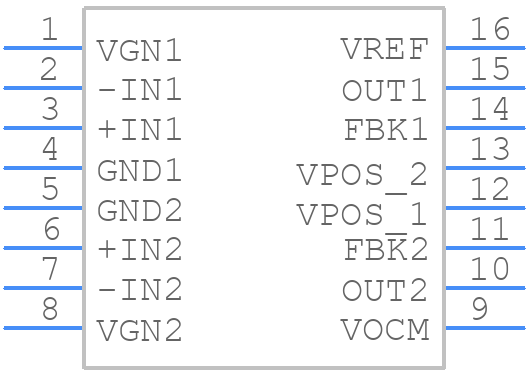

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

AD605ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC N
click to zoom

3D Models

AD605ARZ - Analog Devices  - 3D model - Small Outline Packages - 16-Lead SOIC N
click to zoom

AD605ARZ Details

  • Manufacturer Part Number:

    AD605ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • Risk Rank:

    0.91

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Other Analog ICs

  • Supply Current-Max (Isup):

    23 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD605ARZ Overview

Use the download button to access the AD605ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD605, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems that are used in appl

Parts related to AD605ARZ

Showing 0 results

AD605ARZ Alternates

Showing results

Image Part Number Model
Part Image AD605ARZ-REEL7 Analog Devices Inc

SPECIALTY ANALOG CIRCUIT, PDSO16, MS-012-AC, SOIC-16

Part Image AD605ARZ-REEL Analog Devices Inc

SPECIALTY ANALOG CIRCUIT, PDSO16, MS-012-AC, SOIC-16

Part Image AD605ARZ-RL Analog Devices Inc

Dual, Low Noise, Single-Supply Variable Gain Amplifier

Part Image AD605ARZ-RL7 Analog Devices Inc

IC SPECIALTY ANALOG CIRCUIT, PDSO16, LEAD FREE, MS-012-AC, SOIC-16, Analog IC:Other

Part Image AD605AR-REEL7 Analog Devices Inc

SPECIALTY ANALOG CIRCUIT, PDSO16, MS-012-AC, SOIC-16

For a full list of alternate parts for AD605ARZ, check out Findchips.com
