AD606JNZ - Analog Devices

Description: AD606JNZ, Logarithmic Amplifier, 5 V Differential, 16-Pin PDIP

Download AD606JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

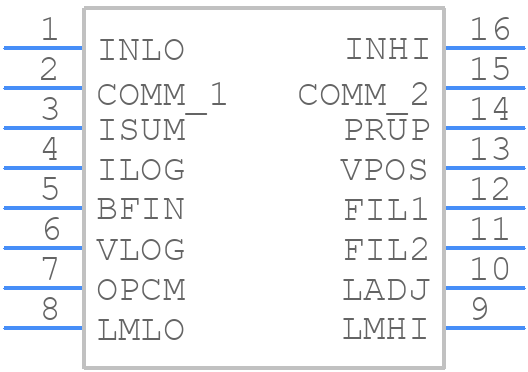

Symbol
AD606JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD606JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Plastic DIP (N-16)
click to zoom
3D Models
AD606JNZ - Analog Devices - 3D model - Dual-In-Line Packages - Plastic DIP (N-16)
click to zoom

AD606JNZ Details

  • Manufacturer Part Number:

    AD606JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    50 MHz

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.46 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD606JNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD606JNZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The AD606JNZ is specified to operate from -40°C to 125°C. Ensure that the device is properly heatsinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the device when designing the system.
  • The recommended input impedance for the AD606JNZ is 1 kΩ or higher, and the recommended output impedance is 100 Ω or lower. This ensures that the device operates within its specified gain and bandwidth.
  • To reduce noise and EMI, use a low-noise power supply, add decoupling capacitors, and use shielding or guard rings around the input and output traces. Also, consider using a common-mode choke or ferrite beads to filter out high-frequency noise.
  • The maximum allowable input voltage for the AD606JNZ is ±10 V. Exceeding this voltage can damage the device or affect its performance.
