AD606JRZ - Analog Devices

Description: AD606JRZ, Logarithmic Amplifier, 5V Differential, 16-Pin SOIC N

Download AD606JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

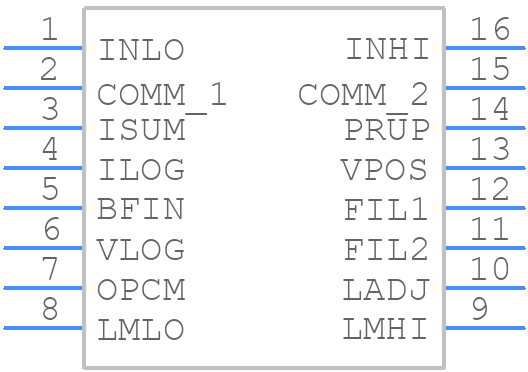

AD606JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD606JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16A_
click to zoom
3D Models
AD606JRZ - Analog Devices - 3D model - Small Outline Packages - R-16A_
click to zoom

AD606JRZ Details

  • Manufacturer Part Number:

    AD606JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    50 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD606JRZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures proper operation and prevents latch-up.
  • To minimize noise, use a low-ESR capacitor (e.g., ceramic or film capacitor) for decoupling, keep the input and output traces short and away from digital lines, and use a quiet power supply. Additionally, consider using a noise-reducing circuit topology, such as a differential amplifier.
  • The AD606JRZ can drive capacitive loads up to 10 nF. However, it's recommended to limit the capacitive load to 1 nF or less to ensure stability and optimal performance.
  • Yes, the AD606JRZ can be used as a single-ended amplifier. However, keep in mind that the device is optimized for differential operation, and single-ended operation may compromise performance. Consult the datasheet and application notes for guidance on single-ended configurations.
  • To minimize EMI and RFI, use a multi-layer PCB with a solid ground plane, keep sensitive analog traces away from digital lines, and use shielding or guard rings around the AD606JRZ. Additionally, consider using a common-mode choke or ferrite beads to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD606JRZ Overview

Use the download button to access the AD606JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD606, or try a keyword search, such as Analog Computational Functions
