AD607ARSZ - Analog Devices

Description: Low Power Mixer/AGC/RSSI 3V Receiver IF Subsystem

Download AD607ARSZ Model

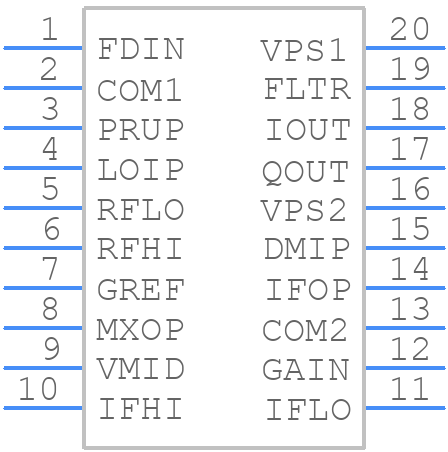

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD607ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RS-20)
click to zoom
3D Models
AD607ARSZ - Analog Devices  - 3D model - Small Outline Packages - (RS-20)
click to zoom

AD607ARSZ Details

  • Manufacturer Part Number:

    AD607ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, MO-150AE, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD607ARSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures proper operation and prevents damage to the device.
  • To minimize noise and interference, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces away from digital traces. Also, use a low-pass filter on the analog input signals to reduce high-frequency noise.
  • The maximum allowable input voltage for the AD607ARSZ is 5.5V, which is the absolute maximum rating. However, the recommended input voltage range is 0V to 4.096V to ensure accurate conversion.
  • Calibration is not required for the AD607ARSZ, as it is a self-calibrating ADC. However, it's recommended to perform a system calibration to ensure optimal performance in the specific application.
  • The typical power consumption of the AD607ARSZ is 15mW at 3V supply voltage and 30mW at 5V supply voltage, assuming a 1Msps conversion rate.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD607ARSZ Overview

Use the download button to access the AD607ARSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD607, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
