AD608ARZ-RL - Analog Devices

Description: RF Mixer Mixer/Limiter/RSSI 3V Rcvr IF Subsystem

Download AD608ARZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

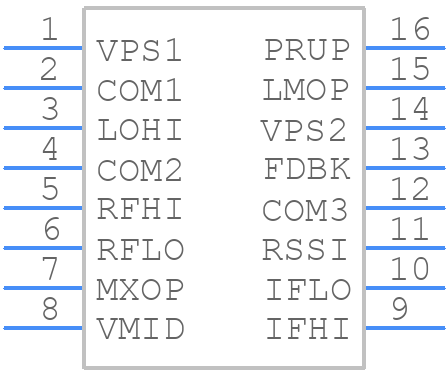

AD608ARZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD608ARZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
AD608ARZ-RL - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

AD608ARZ-RL Details

  • Manufacturer Part Number:

    AD608ARZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

AD608ARZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD608ARZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a low-ESR capacitor for the power supply decoupling.
  • The AD608ARZ-RL is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the package when designing the system.
  • The recommended input voltage range for the AD608ARZ-RL is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and accuracy.
  • To minimize noise and interference, use a low-noise power supply, keep the input traces short and away from digital lines, and use a ground plane to reduce electromagnetic interference. Additionally, consider using shielding and filtering to reduce external noise.
  • The typical settling time of the AD608ARZ-RL is around 10 μs to 1% of the final value. However, this can vary depending on the specific application and output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD608ARZ-RL Overview

Use the download button to access the AD608ARZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD608, or try a keyword search, such as Other RF/Microwave Devices

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
