AD629BR Details
-
Manufacturer Part Number:
AD629BR
-
Source Url Status Check Date:
2013-05-01 14:56:15.512
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, MS-012AA, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
AD629BR Frequently Asked Questions (FAQs)
-
A good layout and grounding technique is crucial for the AD629BR. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the input and output traces separate. The AD629BR should be placed close to the signal source, and the input traces should be kept short and shielded. A star-grounding technique is recommended, where all grounds are connected to a single point, and the AD629BR's ground pin should be connected to this point.
-
To optimize the performance of the AD629BR in a noisy environment, it is recommended to use shielding, filtering, and grounding techniques. The AD629BR should be placed in a shielded enclosure, and the input and output cables should be shielded and filtered. A common-mode filter can be used to reject noise, and a differential filter can be used to reject differential noise. Additionally, the AD629BR's input and output should be decoupled using capacitors to reduce noise.
-
The maximum allowable input voltage for the AD629BR is ±20V. Exceeding this voltage can damage the device. It is recommended to use input protection devices such as voltage limiters or clamping diodes to prevent overvoltage conditions.
-
The AD629BR requires calibration to achieve optimal performance. The calibration process involves adjusting the offset and gain of the device to match the specific application requirements. The calibration process typically involves applying a known input signal and adjusting the offset and gain until the desired output is achieved. The calibration process should be performed at the operating temperature range of the device.
-
The AD629BR can dissipate up to 1.4W of power, and proper thermal management is crucial to prevent overheating. A heat sink can be used to dissipate heat, and the device should be placed in a well-ventilated area. The thermal management strategy should also consider the operating temperature range of the device, which is -40°C to +125°C.
Trust Checks
Community Provided
System Verified
Community Approved
AD629BR Overview

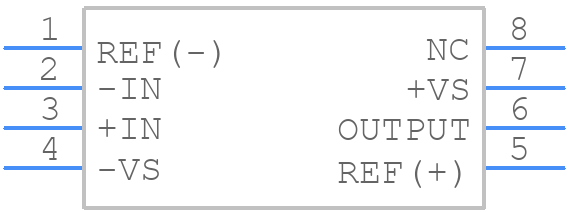

Use the download button to access the AD629BR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD629,
or try a keyword search, such as Operational Amplifiers
