AD630BD - Analog Devices

Description: IC MOD/DEMOD BAL 2MHZ 20-CDIP

Download AD630BD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

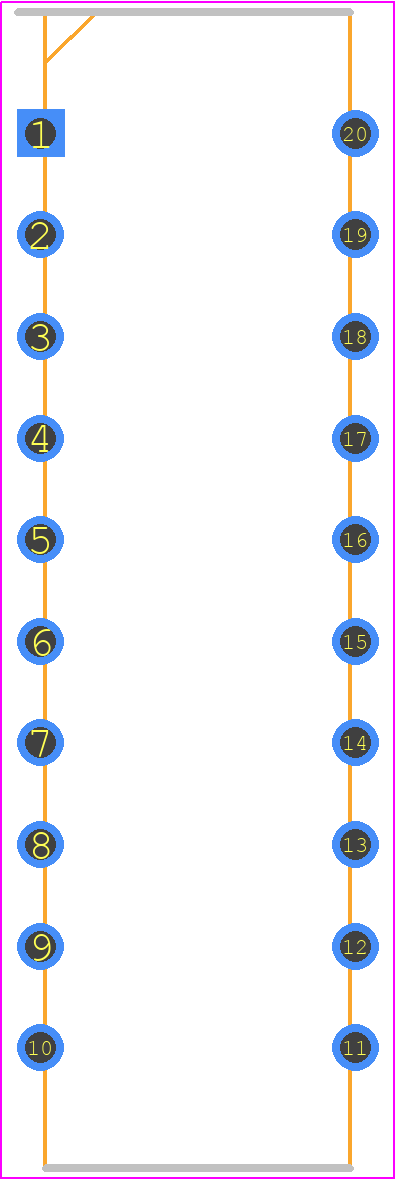

AD630BD - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - AD630BD
click to zoom

AD630BD Details

  • Manufacturer Part Number:

    AD630BD

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    SIDE BRAZED, CERAMIC, DIP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

AD630BD Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD630BD. It is recommended to use a star-grounding configuration, with the analog and digital grounds separated and connected at a single point. The input and output traces should be kept short and away from noise sources. A ground plane is also recommended to reduce noise and electromagnetic interference.
  • The gain and bandwidth of the AD630BD can be optimized by selecting the appropriate gain resistors and capacitors. The gain resistors should be chosen to provide the desired gain, while the capacitors should be selected to filter out high-frequency noise and ensure stability. The datasheet provides a gain-bandwidth product graph to help with the selection.
  • The AD630BD's performance is affected by temperature. The gain and bandwidth may vary with temperature, and the device may exhibit thermal noise. The datasheet provides temperature-related specifications, such as the operating temperature range and the temperature coefficient of the gain and offset voltage.
  • Noise and EMI can be reduced in the AD630BD circuit by using shielding, filtering, and decoupling techniques. The input and output traces should be shielded, and the power supply lines should be filtered using capacitors and inductors. Decoupling capacitors should be placed close to the device to reduce noise and EMI.
  • The recommended power supply voltage for the AD630BD is ±15V, and the maximum current is 10mA. The power supply should be well-regulated and filtered to reduce noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD630BD Overview

Use the download button to access the AD630BD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD630, or try a keyword search, such as Other Signal Circuits
