AD630KNZ - Analog Devices

Description: AD630KNZ, Modulator/Demodulator Balanced 120dB 2MHz ±5 → ±16.5 V 20-Pin PDIP

Download AD630KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

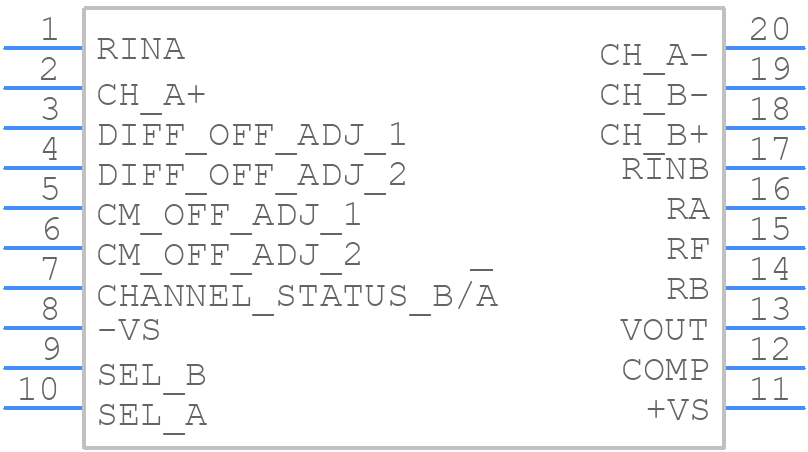

AD630KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD630KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
AD630KNZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

AD630KNZ Details

  • Manufacturer Part Number:

    AD630KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

AD630KNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the internal analog circuitry is powered up before the digital circuitry.
  • To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and well-separated. Also, place the decoupling capacitors close to the device pins.
  • The maximum allowable input voltage is ±VCC, which is typically ±15V for a ±15V supply. Exceeding this voltage can damage the device.
  • The output current of the AD630KNZ is limited to 10mA. Ensure that the output is not overloaded, and use an external buffer or amplifier if higher currents are required.
  • The AD630KNZ's performance is affected by temperature. The device's offset voltage, gain, and bandwidth can vary with temperature. Ensure that the device is operated within the specified temperature range (-40°C to +125°C) for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD630KNZ Overview

Use the download button to access the AD630KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD630, or try a keyword search, such as Other Signal Circuits
