AD637KDZ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized RMS/DC CONVERTER IC

Download AD637KDZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

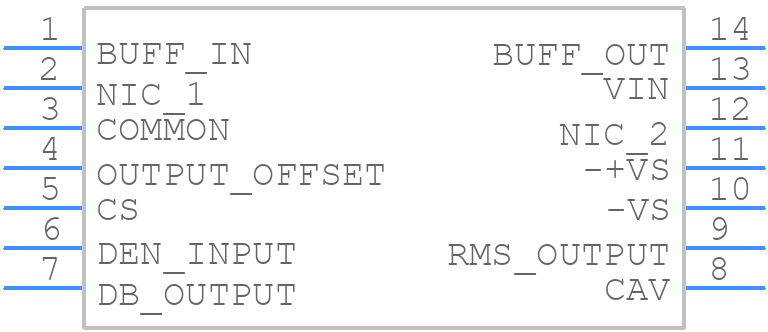

AD637KDZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD637KDZ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-14
click to zoom

AD637KDZ Details

  • Manufacturer Part Number:

    AD637KDZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    SIDE BRAZED, CERAMIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    D-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    RMS TO DC CONVERTER

  • JESD-30 Code:

    R-CDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.43 mm

  • Linearity Error-Max (EL):

    0.05%

  • Negative Supply Voltage-Max:

    -18 V

  • Negative Supply Voltage-Min:

    -3 V

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    0.15 MHz

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    7 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Error-Max:

    0.3%

  • Width:

    7.62 mm

AD637KDZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD637KDZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure the AD637KDZ operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal interface material can be used to improve heat transfer between the device and the heat sink. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
  • When handling the AD637KDZ, it's essential to take precautions to prevent damage from electrostatic discharge (ESD). This includes using an ESD wrist strap or mat, handling the device by the body rather than the pins, and storing the device in an anti-static bag or tube.
  • To troubleshoot issues with the AD637KDZ, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, and ensure the device is properly soldered and connected. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.
  • The AD637KDZ is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required safety and reliability standards. This includes following the recommended PCB layout, using a reliable power supply, and implementing adequate fault detection and protection mechanisms.
