AD640JNZ - Analog Devices

Description: AD640JNZ, Logarithmic Amplifier Differential, 20-Pin PDIP N

Download AD640JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

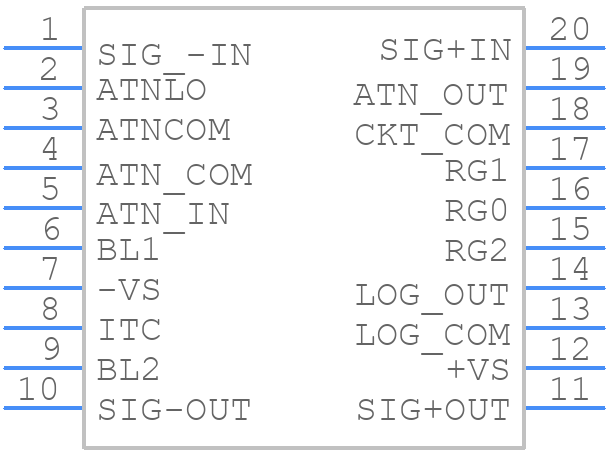

Symbol
AD640JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD640JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
AD640JNZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

AD640JNZ Details

  • Manufacturer Part Number:

    AD640JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    145 MHz

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Neg Supply Voltage-Max (Vsup):

    -7.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Negative Input Voltage-Max:

    -2 V

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    0.3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    60 mA

  • Supply Voltage-Max (Vsup):

    7.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD640JNZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration to minimize noise and ensure that the analog and digital circuits are separated.
  • The AD640JNZ has an internal calibration circuit that is enabled by applying a voltage to the CAL pin. The calibration process is initiated by applying a voltage between 1.2V and 1.4V to the CAL pin. The device will then calibrate itself and store the calibration data in its internal registers.
  • The maximum input voltage that the AD640JNZ can handle is ±10V. Exceeding this voltage may damage the device. It's recommended to use input voltage limiting resistors or voltage clamping circuits to prevent overvoltage conditions.
  • To minimize noise and interference, use a low-pass filter at the input, keep the input traces short and away from digital signals, and use a shielded enclosure. Also, ensure that the power supply is well-regulated and decoupled with capacitors.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
