AD652JPZ - Analog Devices

Description: AD652JPZ, Voltage to Frequency Converter, Synchronous, 2000kHz ±0.05%FSR, 20-Pin PLCC

Download AD652JPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

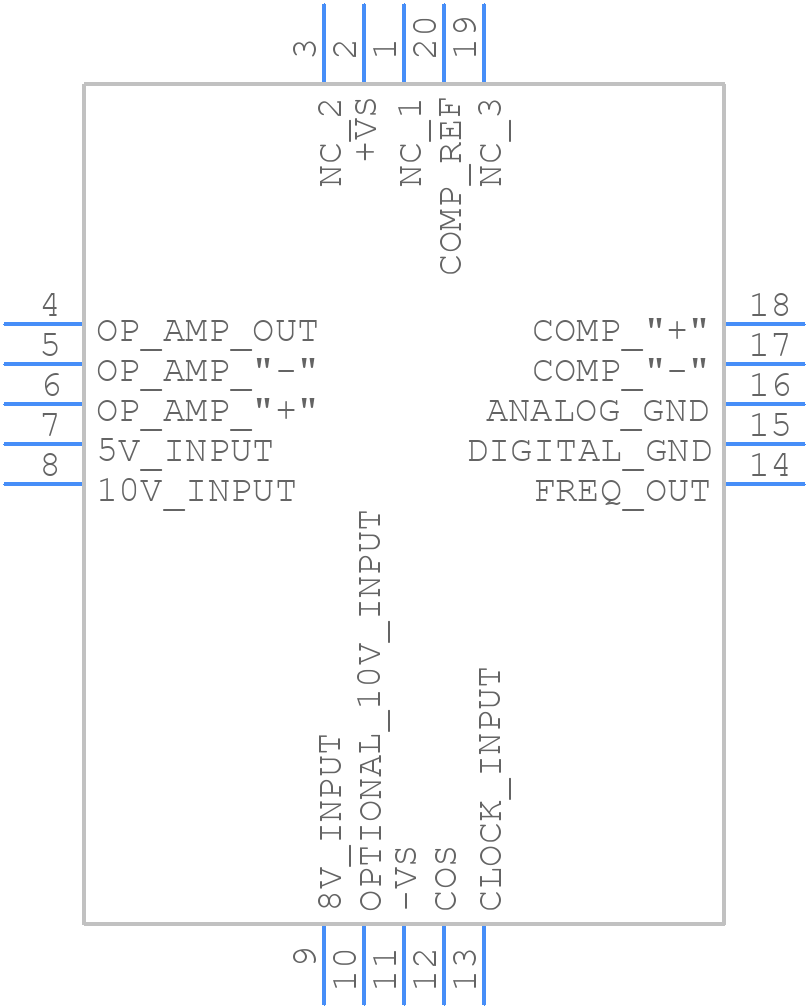

AD652JPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD652JPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-20A
click to zoom
3D Models
AD652JPZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-20A
click to zoom

AD652JPZ Details

  • Manufacturer Part Number:

    AD652JPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.9662 mm

  • Linearity Error-Max (EL):

    0.05%

  • Moisture Sensitivity Level:

    1

  • Negative Input Voltage-Max:

    -5 V

  • Negative Supply Voltage-Max:

    -18 V

  • Negative Supply Voltage-Min:

    -6 V

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    4 MHz

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC20,.4SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Total Error-Max:

    0.5%

  • Width:

    8.9662 mm

AD652JPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD652JPZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 5V or 15V), and decouple it with a 0.1uF capacitor to ground. The VEE pin should be connected to a negative voltage source (e.g., -5V or -15V) or ground, depending on the application.
  • The maximum allowable power dissipation for the AD652JPZ is 1.4W, assuming a junction temperature of 150°C. Exceeding this limit can cause the device to overheat and potentially fail.
  • The AD652JPZ is rated for operation from -40°C to 85°C. While it can tolerate high temperatures, its performance may degrade above 70°C. For high-temperature applications, consider using a thermally enhanced package or a different device specifically designed for high-temperature operation.
  • To troubleshoot issues with the AD652JPZ, start by verifying the power supply and biasing conditions. Check for proper decoupling, and ensure that the input and output traces are properly routed. If oscillations occur, try adding a small capacitor (e.g., 10pF) between the output and ground. If instability persists, consult the datasheet and application notes for guidance.
