AD652SQ - Analog Devices

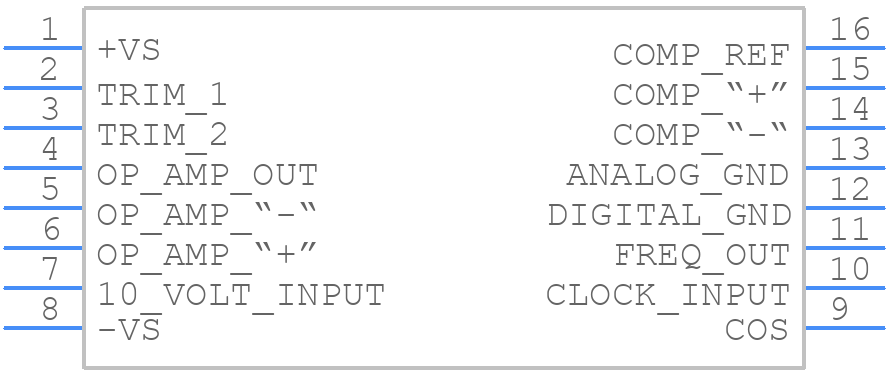

AD652SQ Details

• Manufacturer Part Number:

  AD652SQ

• Source Url Status Check Date:

  2013-05-01 14:56:15.745

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  Q-16

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Converter Type:

  VOLTAGE TO FREQUENCY CONVERTER

• JESD-30 Code:

  R-GDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.05 mm

• Linearity Error-Max (EL):

  0.05%

• Negative Input Voltage-Max:

  -5 V

• Negative Supply Voltage-Max:

  -18 V

• Negative Supply Voltage-Min:

  -6 V

• Negative Supply Voltage-Nom:

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Frequency-Max:

  4 MHz

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Positive Input Voltage-Max:

  5 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  15 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  6 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn63Pb37)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Error-Max:

  0.5%

• Width:

  7.62 mm
