AD654JRZ - Analog Devices

Description: AD654JRZ, Voltage to Frequency Converter, Non-Synchronous, 500kHz ±0.4%FSR, 8-Pin SOIC N

Download AD654JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

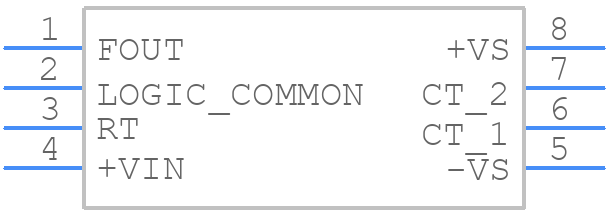

Symbol
AD654JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD654JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N]
click to zoom
3D Models
AD654JRZ - Analog Devices - 3D model - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N]
click to zoom

AD654JRZ Details

  • Manufacturer Part Number:

    AD654JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.4%

  • Moisture Sensitivity Level:

    1

  • Negative Input Voltage-Max:

    -5 V

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    0.5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    1 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD654JRZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the power supplies (VCC and VEE) before applying the input signals. This ensures that the internal circuitry is properly biased before the input signals are applied.
  • The AD654JRZ is specified to operate from -40°C to +125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Also, consider the thermal resistance of the package and the PCB layout to ensure proper heat dissipation.
  • The maximum input voltage that can be applied to the AD654JRZ is ±15V. Exceeding this voltage can cause damage to the device.
  • To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using bypass capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, use a low-noise power supply and consider using a ferrite bead or common-mode choke to filter out high-frequency noise.
  • The recommended layout and routing for the AD654JRZ involves keeping the input and output traces short and direct, using a ground plane to reduce noise, and avoiding routing signals near the device's power pins. Additionally, consider using a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD654JRZ Overview

Use the download button to access the AD654JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD654, or try a keyword search, such as Analog Special Function Converters
