AD6636BBCZ footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

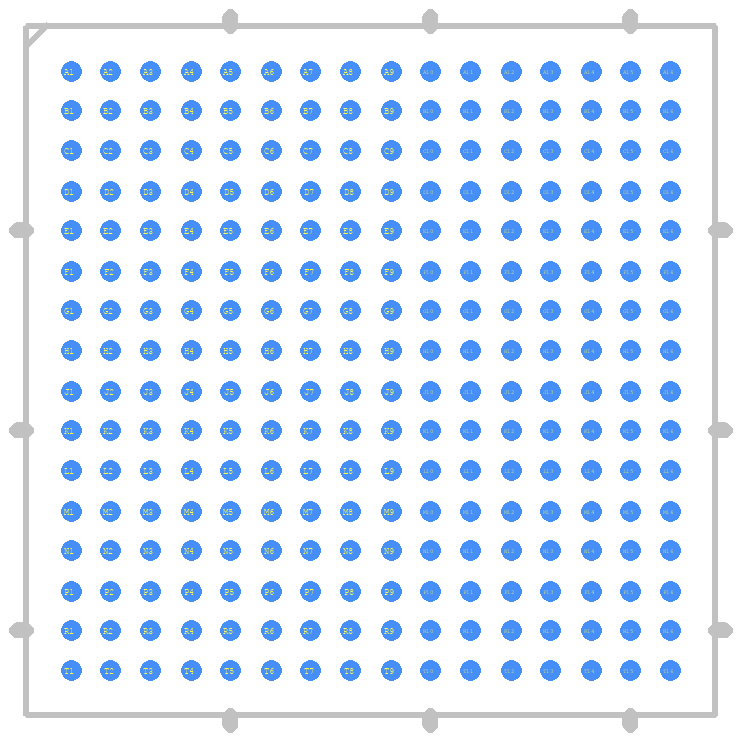

AD6636BBCZ - Analog Devices PCB footprint - Other - Other - BGA256C100P16X16_1700X1700X185

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD6636BBCZ
Part Number AD6636BBCZ
Manufacturer Analog Devices
Pin Count 256
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA256C100P16X16_1700X1700X185
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD6636BBCZ Details

Manufacturer Part Number:
AD6636BBCZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
BGA
Package Description:
LEAD FREE, MO-192-AAF-1, CSP, BGA-256
Pin Count:
256
Manufacturer Package Code:
BC-256-2
Country Of Origin:
Singapore
ECCN Code:
5A991.B
HTS Code:
8542.31.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
JESD-30 Code:
S-PBGA-B256
JESD-609 Code:
e1
Length:
17 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
256
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
BGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.85 mm
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Technology:
CMOS
Telecom IC Type:
RF AND BASEBAND CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
17 mm
