AD6636CBCZ - Analog Devices

Description: Analog Devices AD6636CBCZ Data Acquisition Circuit, 16 bit, 3.37µs, 256-Pin CSPBGA

Download AD6636CBCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD6636CBCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

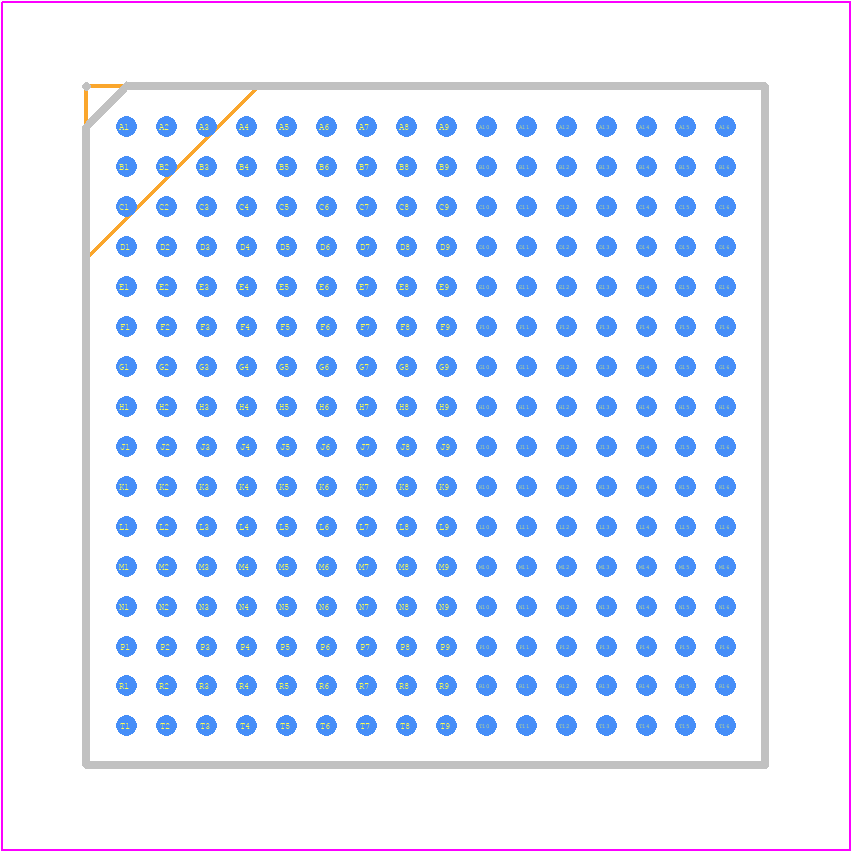

AD6636CBCZ - Analog Devices PCB footprint - BGA - BGA - BC-256-2
click to zoom
3D Models
AD6636CBCZ - Analog Devices - 3D model - BGA - BC-256-2
click to zoom

AD6636CBCZ Details

  • Manufacturer Part Number:

    AD6636CBCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    BGA

  • Package Description:

    LEAD FREE, MO-192-AAF-1, CSP, BGA-256

  • Pin Count:

    256

  • Manufacturer Package Code:

    BC-256-2

  • Country Of Origin:

    Singapore

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

AD6636CBCZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance in a noisy environment, ensure that the AD6636CBCZ is placed in a shielded area, use a low-pass filter on the input signals, and decouple the power supplies with capacitors. Additionally, consider using a ferrite bead or a common-mode choke on the input lines to reduce electromagnetic interference (EMI).
  • The AD6636CBCZ can support clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • To configure the AD6636CBCZ for differential input mode, connect the positive input signal to the IN+ pin and the negative input signal to the IN- pin. Ensure that the input common-mode voltage is within the specified range, and set the input mode select pin (INMODE) to the appropriate state.
  • The typical power consumption of the AD6636CBCZ is around 350 mW, assuming a 3.3 V analog supply voltage and a 1.8 V digital supply voltage. However, the actual power consumption may vary depending on the specific application and operating conditions.
