- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD667JPZ-REEL
- Part Number AD667JPZ-REEL
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - PLCC127P1244X1244X457-28N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD667JPZ-REEL Details
-
Manufacturer Part Number:
AD667JPZ-REEL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
QLCC
-
Package Description:
PLASTIC, LCC-28
-
Pin Count:
28
-
Manufacturer Package Code:
P-28
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD667JPZ-REEL Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD667JPZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to follow the layout guidelines provided in the AD667JPZ-REEL evaluation board documentation.
-
To optimize power supply decoupling for the AD667JPZ-REEL, use a combination of ceramic and electrolytic capacitors with different values (e.g., 10nF, 100nF, and 10uF) placed close to the device's power pins. This will help to filter out high-frequency noise and ensure a stable power supply. Additionally, use a low-ESR capacitor (e.g., 10uF) for the analog power supply (AVDD) and a separate capacitor for the digital power supply (DVDD).
-
The maximum clock frequency that can be used with the AD667JPZ-REEL is 160 MHz. However, the actual clock frequency used may be limited by the specific application and the device's operating conditions. It's recommended to consult the datasheet and the device's evaluation board documentation for more information on clock frequency limitations.
-
To ensure the AD667JPZ-REEL is properly calibrated for optimal performance, follow the calibration procedure outlined in the datasheet and the device's evaluation board documentation. This typically involves applying a known input signal, measuring the output, and adjusting the device's internal calibration registers accordingly. Additionally, it's recommended to perform periodic recalibration to maintain optimal performance over time.
-
The typical power consumption of the AD667JPZ-REEL is around 350 mW at a clock frequency of 160 MHz and an analog supply voltage of 1.8V. However, the actual power consumption may vary depending on the specific application, operating conditions, and clock frequency used. It's recommended to consult the datasheet and the device's evaluation board documentation for more information on power consumption.
Trust Checks
System Verified
AD667JPZ-REEL Overview

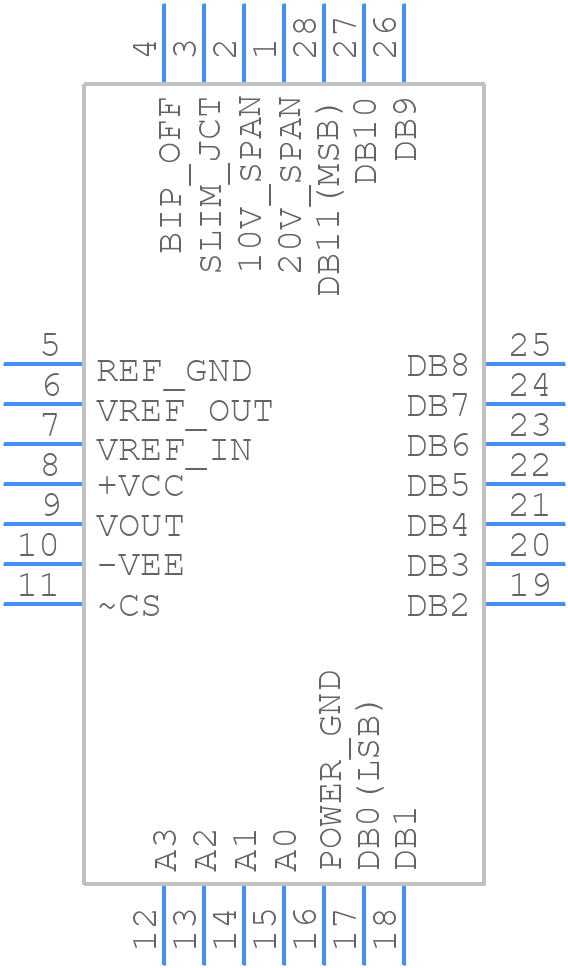

Use the download button to access the AD667JPZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD667,
or try a keyword search, such as Digital to Analog Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
