- Part Number AD667KPZ
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - PLCC127P1244X1244X457-28N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD667KPZ Details
-
Manufacturer Part Number:
AD667KPZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
QLCC
-
Package Description:
PLASTIC, LCC-28
-
Pin Count:
28
-
Manufacturer Package Code:
P-28
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD667KPZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD667KPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
The AD667KPZ requires a calibration process to ensure accurate performance. This involves applying a known input signal and adjusting the internal calibration registers to achieve the desired output. The calibration process is typically done using a software tool provided by Analog Devices or a third-party calibration tool.
-
The maximum input signal amplitude that the AD667KPZ can handle is ±VREF, where VREF is the reference voltage. For a 5V supply, the maximum input signal amplitude is ±2.5V. Exceeding this limit can result in distortion and reduced accuracy.
-
The AD667KPZ has a parallel interface that can be connected to a microcontroller or FPGA. The interface consists of a 16-bit data bus, a chip select signal, and a clock signal. The microcontroller or FPGA can read data from the AD667KPZ by asserting the chip select signal and clocking in the data.
-
The power consumption of the AD667KPZ depends on the operating frequency and the supply voltage. At a 5V supply and a 65 MSPS sampling rate, the typical power consumption is around 330 mW. The power consumption can be reduced by operating the device at a lower sampling rate or using a lower supply voltage.
Trust Checks
System Verified
AD667KPZ Overview

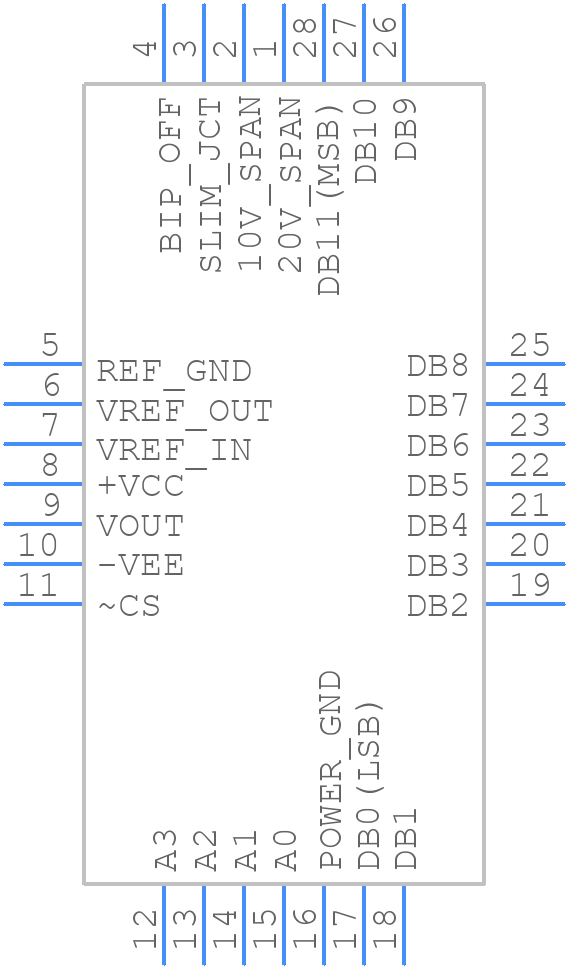

Use the download button to access the AD667KPZ schematic symbol, PCB footprint, and 3D model.
