AD694ARZ-REEL - Analog Devices

Description: 4-20mA Monolithic Current Transmitter

Download AD694ARZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

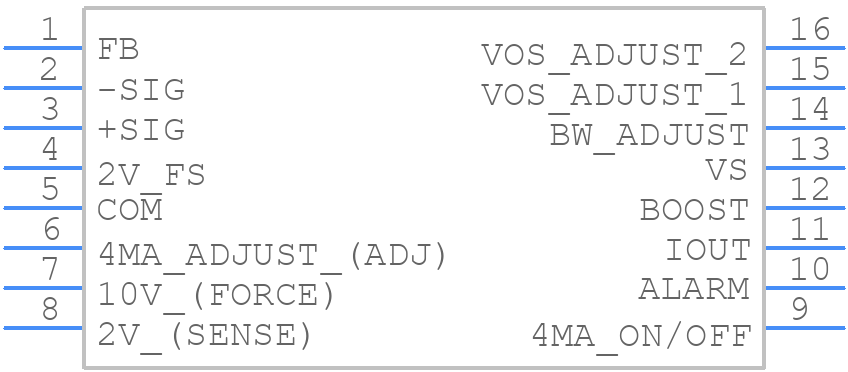

Symbol
AD694ARZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD694ARZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD694ARZ-REEL
click to zoom
3D Models
AD694ARZ-REEL - Analog Devices - 3D model - Small Outline Packages - AD694ARZ-REEL
click to zoom

AD694ARZ-REEL Details

  • Manufacturer Part Number:

    AD694ARZ-REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

AD694ARZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD694ARZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. It's also important to use a high-precision voltage reference and to minimize noise and interference.
  • The AD694ARZ-REEL is rated for operation from -40°C to +125°C, but it's recommended to derate the device for high-temperature operation to ensure reliability and accuracy.
  • While the AD694ARZ-REEL is a robust device, it's not designed for high-vibration or high-shock environments. If you need to use the device in such an environment, consider using additional mechanical protection, such as a shock-absorbing mounting system, and ensure that the device is properly secured to the PCB.
  • To troubleshoot issues with the AD694ARZ-REEL, start by checking the power supply voltage, input signals, and output loading. Verify that the device is properly configured and that the input signals are within the recommended range. Use an oscilloscope to visualize the input and output signals and look for signs of oscillation or distortion.
