AD694BRZ - Analog Devices

Description: AD694BRZ, Instrumention Amplifier, 0.5mV Offset, 80dB CMRR, 5 to 28V, 16-Pin SOIC W

Download AD694BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

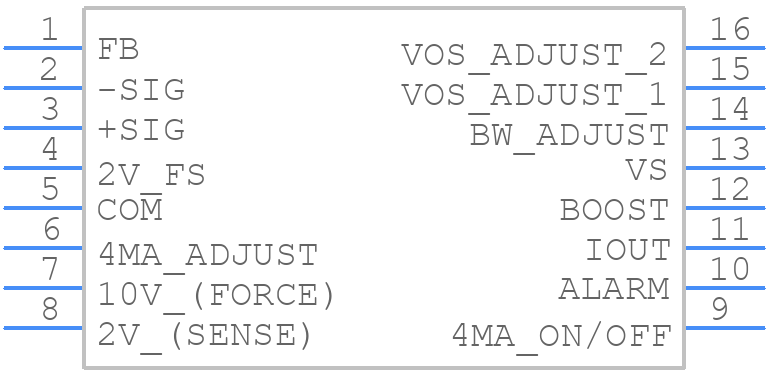

AD694BRZ - Analog Devices - PCB symbol
