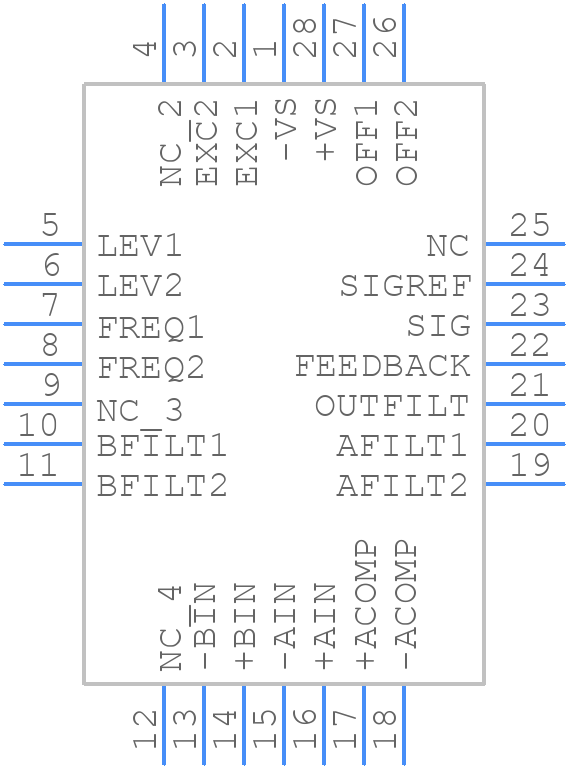

AD698AP - Analog Devices

AD698AP Details

• Manufacturer Part Number:

  AD698AP

• Source Url Status Check Date:

  2013-05-01 14:56:16.334

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QLCC

• Package Description:

  LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  P-28A

• HTS Code:

  8542.39.00.50

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Input Voltage-Max:

  2.3 V

• Angular Accuracy-Max:

  2 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e0

• Length:

  11.505 mm

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Max:

  -18 V

• Negative Supply Voltage-Min:

  -6.5 V

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  225

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Signal/Output Frequency:

  10000 Hz

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  6.5 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Tracking Rate-Max:

  18 rps

• Width:

  11.505 mm
