AD698APZ - Analog Devices

Description: Universal LVDT Signal Conditioner

Download AD698APZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

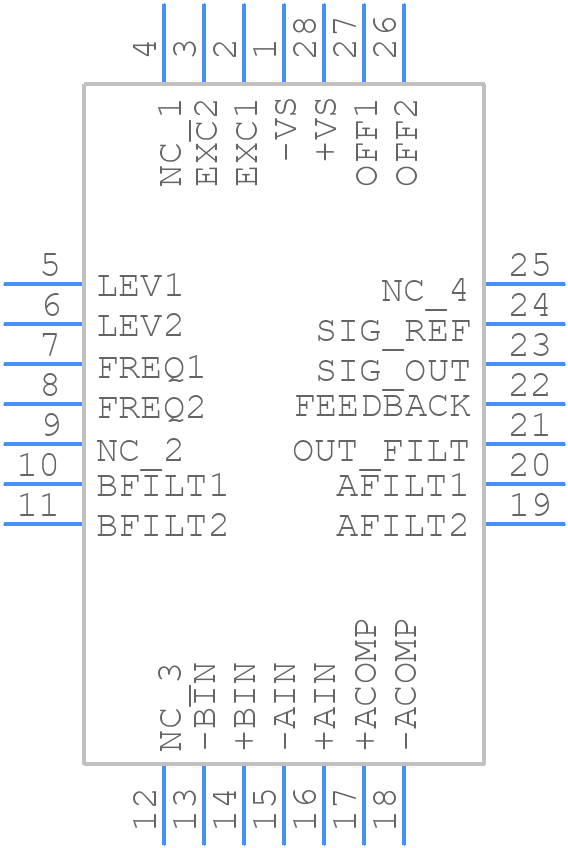

Symbol
AD698APZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD698APZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 28-Pin PLCC PACAGE-
click to zoom
3D Models
AD698APZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - 28-Pin PLCC PACAGE-
click to zoom

AD698APZ Details

  • Manufacturer Part Number:

    AD698APZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Package Description:

    LCC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    P-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.3 V

  • Angular Accuracy-Max:

    2 arc min

  • Converter Type:

    SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e3

  • Length:

    11.505 mm

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Max:

    -18 V

  • Negative Supply Voltage-Min:

    -6.5 V

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Signal/Output Frequency:

    10000 Hz

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Tracking Rate-Max:

    18 rps

  • Width:

    11.505 mm

AD698APZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD698APZ involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply with a 10uF capacitor.
  • To ensure accurate temperature measurement, calibrate the AD698APZ using a precision temperature source, and ensure the device is thermally connected to the target temperature source. Also, consider using a thermocouple or RTD sensor for more accurate measurements.
  • The maximum cable length for the AD698APZ's analog output signal depends on the specific application and noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) and use shielded cables to minimize noise pickup.
  • Yes, the AD698APZ is designed to operate in high-vibration environments. However, ensure the device is properly mounted and secured to prevent mechanical stress, and consider using a vibration-dampening material to minimize the effects of vibration.
  • To troubleshoot common issues with the AD698APZ, check the power supply voltage, ensure proper grounding, and verify the input and output connections. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD698APZ Overview

Use the download button to access the AD698APZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD698, or try a keyword search, such as Position Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
