AD6PS-1+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SURF MT/ RoHS

Download AD6PS-1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

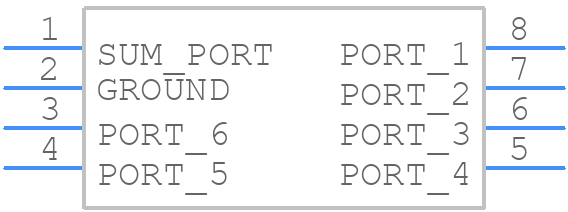

AD6PS-1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

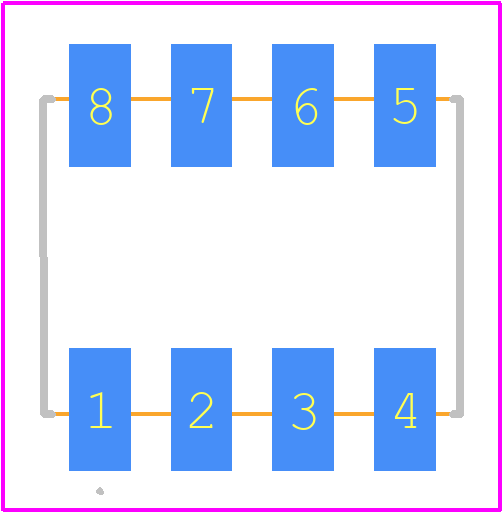

AD6PS-1+ - Mini-Circuits PCB footprint - Other - Other - AD6PS-1+-2
click to zoom
3D Models
AD6PS-1+ - Mini-Circuits - 3D model - Other - AD6PS-1+-2
click to zoom

AD6PS-1+ Details

  • Manufacturer Part Number:

    AD6PS-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CJ725, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.7

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    250 MHz

  • Operating Frequency-Min:

    2 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.4

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    1.43

AD6PS-1+ Frequently Asked Questions (FAQs)

  • A good PCB layout and grounding scheme is crucial for optimal performance. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. The device should be placed close to the power supply and the ground plane should be connected to the device's ground pins.
  • To ensure proper biasing, follow the recommended biasing scheme in the datasheet. Make sure to use a stable voltage source and decouple the power supply lines with capacitors. The device's bias pins should be connected to a stable voltage source through a resistor and capacitor network.
  • The maximum power handling capability of the AD6PS-1+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of power. It is recommended to derate the power handling capability based on the operating frequency and environmental conditions.
  • To troubleshoot common issues, start by checking the PCB layout and grounding scheme. Ensure that the device is properly biased and the power supply lines are decoupled. Check for any signs of overheating or damage to the device. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • The AD6PS-1+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 100°C. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
