AD7008JP50 footprint, schematic symbol and 3D model by Analog Devices

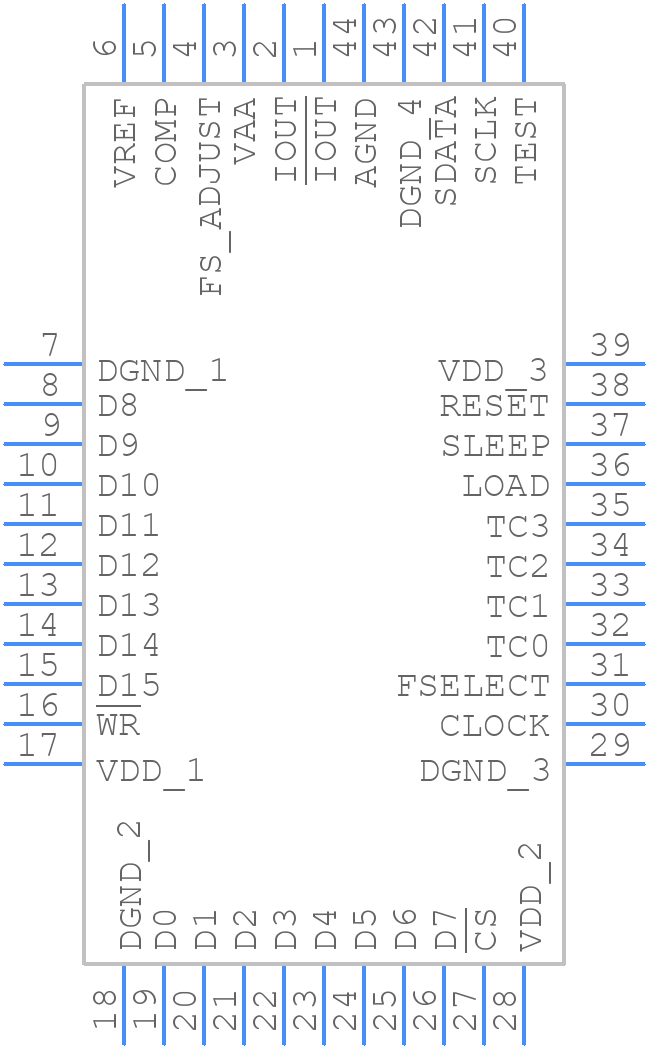

Symbol

click to zoom

PCB Footprints

AD7008JP50 - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-44A(PLCC)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7008JP50
Part Number AD7008JP50
Manufacturer Analog Devices
Pin Count 44
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - P-44A(PLCC)
Released Date Nov 29, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7008JP50 Details

Manufacturer Part Number:
AD7008JP50
Part Life Cycle Code:
Obsolete
Part Package Code:
LCC
Package Description:
PLASTIC, LCC-44
Pin Count:
44
ECCN Code:
3A991.a.2
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
YTEOL:
0
Boundary Scan:
NO
Clock Frequency-Max:
50 MHz
External Data Bus Width:
1
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e0
Length:
16.5862 mm
Low Power Mode:
YES
Number of Terminals:
44
Operating Temperature-Max:
70 °C
Output Data Bus Width:
1
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
220
Qualification Status:
Not Qualified
Seated Height-Max:
4.57 mm
Supply Current-Max:
97 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Lead (Sn85Pb15)
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
16.5862 mm
uPs/uCs/Peripheral ICs Type:
DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
