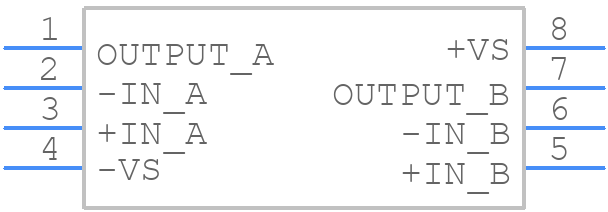

AD708JNZ - Analog Devices

AD708JNZ Details

• Manufacturer Part Number:

  AD708JNZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Package Description:

  DIP-8

• Pin Count:

  8

• Manufacturer Package Code:

  N-8

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.004 µA

• Bias Current-Max (IIB) @25C:

  0.0025 µA

• Common-mode Reject Ratio-Min:

  120 dB

• Common-mode Reject Ratio-Nom:

  140 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  150 µV

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.88 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  YES

• Neg Supply Voltage Limit-Max:

  -22 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Slew Rate-Min:

  0.15 V/us

• Slew Rate-Nom:

  0.3 V/us

• Supply Current-Max:

  5.5 mA

• Supply Voltage Limit-Max:

  22 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  900

• Voltage Gain-Min:

  3000000

• Wideband:

  NO

• Width:

  7.62 mm
