AD7111ABRZ - Analog Devices

Description: AD7111ABRZ, 17 bit-Bit DAC Parallel, 16-Pin SOIC W

Download AD7111ABRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

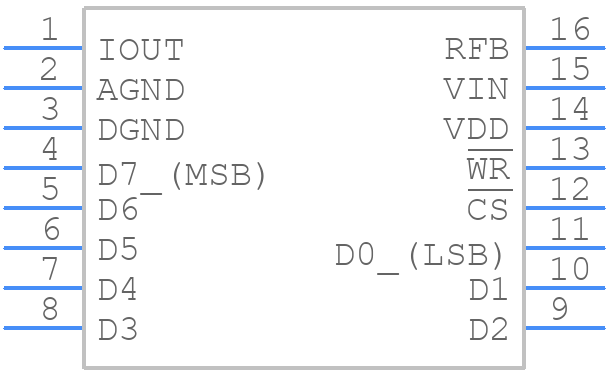

AD7111ABRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7111ABRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16(SOIC)_3
click to zoom

AD7111ABRZ Details

  • Manufacturer Part Number:

    AD7111ABRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7111ABRZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7111ABRZ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the AD7111ABRZ in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, use a low-pass filter at the input to remove high-frequency noise, and consider using a ferrite bead or common-mode choke to filter out high-frequency noise.
  • The maximum operating temperature range for the AD7111ABRZ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
  • To troubleshoot issues with the AD7111ABRZ, start by checking the power supply voltage, input signal, and output signal. Verify that the device is properly connected and configured. Use an oscilloscope to check for noise, distortion, or other anomalies in the output signal. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • The AD7111ABRZ is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, consider using a device that is specifically designed and qualified for high-reliability or safety-critical use, such as a device with a higher temperature rating, radiation hardening, or other specialized features.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7111ABRZ Overview

Use the download button to access the AD7111ABRZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD711, or try a keyword search, such as Digital to Analog Converters
