- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7111ACRZ-REEL
- Part Number AD7111ACRZ-REEL
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1032X265-16N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7111ACRZ-REEL Details
-
Manufacturer Part Number:
AD7111ACRZ-REEL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SOIC
-
Package Description:
0.300 INCH, 2 MM HEIGHT, SOIC-16
-
Pin Count:
16
-
Manufacturer Package Code:
RW-16
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7111ACRZ-REEL Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the AD7111ACRZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's essential to minimize the distance between the device and the decoupling capacitors.
-
To ensure the accuracy of the AD7111ACRZ-REEL's temperature measurement, it's crucial to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed in a thermally stable environment, and the temperature sensor should be shielded from air currents and radiation.
-
The maximum allowed voltage on the AD7111ACRZ-REEL's input pins is 5.5V, which is the absolute maximum rating. However, the recommended maximum voltage is 5V to ensure reliable operation and prevent damage to the device.
-
The AD7111ACRZ-REEL is rated for operation from -40°C to 125°C. However, the device's accuracy and reliability may degrade at high temperatures. It's essential to consult the datasheet and application notes for specific guidance on using the device in high-temperature environments.
-
To troubleshoot issues with the AD7111ACRZ-REEL's analog-to-digital conversion, start by verifying the power supply and voltage references, checking the input signal integrity, and ensuring proper grounding and shielding. Then, use a logic analyzer or oscilloscope to monitor the digital output and verify that it matches the expected conversion results.
Trust Checks
System Verified
AD7111ACRZ-REEL Overview

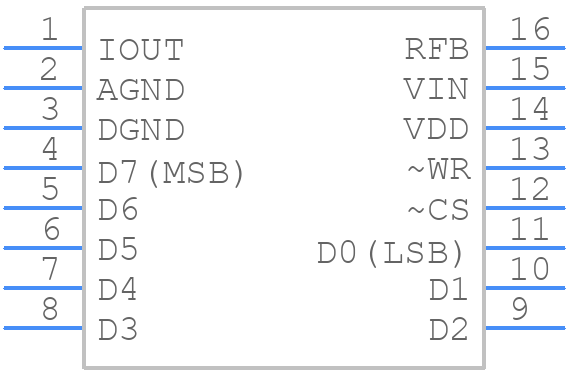

Use the download button to access the AD7111ACRZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD711,
or try a keyword search, such as Digital to Analog Converters
