AD7111KNZ - Analog Devices

Description: AD7111KNZ, 17 bit-Bit DAC Parallel, 16-Pin PDIP

Download AD7111KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

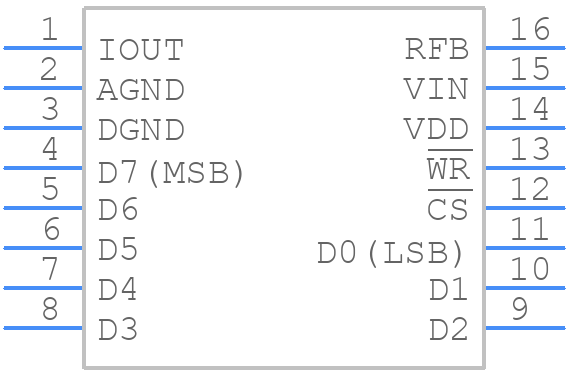

AD7111KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

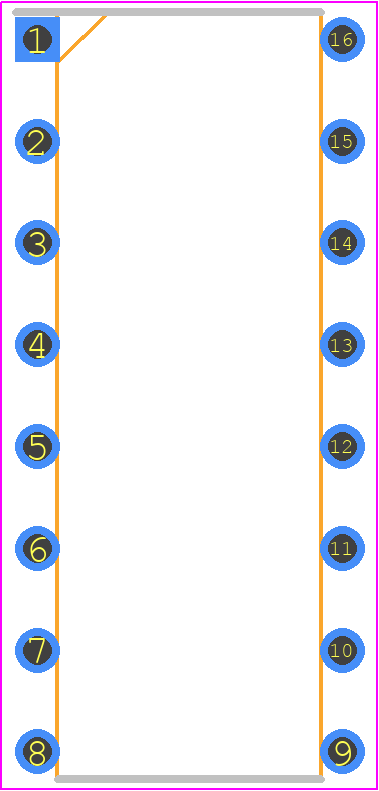

AD7111KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_2020_4.32
click to zoom
3D Models
AD7111KNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16_2020_4.32
click to zoom

AD7111KNZ Details

  • Manufacturer Part Number:

    AD7111KNZ

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7111KNZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keeping the analog and digital grounds separate, and placing the AD7111KNZ close to the analog signal sources. Additionally, use a solid ground plane and avoid routing digital signals near the analog inputs.
  • The gain and offset of the AD7111KNZ can be configured using external resistors and voltage references. Refer to the datasheet's application circuits and equations to determine the required values for your specific application. You can also use Analog Devices' online tools and calculators to simplify the process.
  • The AD7111KNZ can handle input voltages up to ±16.5V, but it's recommended to limit the input voltage to ±10V to ensure optimal performance and prevent damage. Exceeding the maximum input voltage can cause permanent damage to the device.
  • The AD7111KNZ is specified to operate from -40°C to +125°C. Ensure that the device is properly heatsinked, and the ambient temperature is within the specified range. You can also use thermal management techniques, such as thermal pads or heat sinks, to maintain a safe operating temperature.
  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing incorrect operation or damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7111KNZ Overview

Use the download button to access the AD7111KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD711, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
