AD712JN - Analog Devices

Description: Operational Amplifier, Dual AMP, Bipolar/JFET, 8 Pin, Plastic, DIP

Download AD712JN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

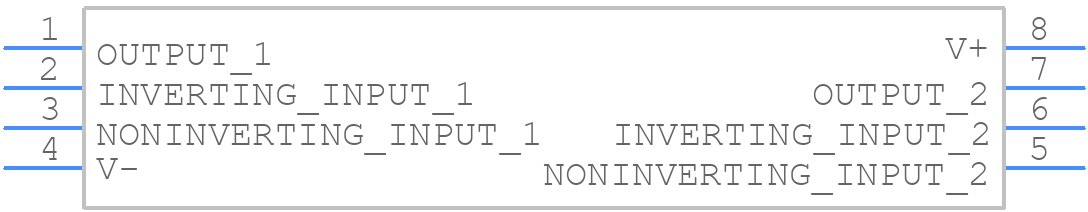

Symbol
AD712JN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD712JN - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line Package [PDIP] (N-8)
click to zoom
3D Models
AD712JN - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line Package [PDIP] (N-8)
click to zoom

AD712JN Details

  • Manufacturer Part Number:

    AD712JN

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MS-001BA, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0006 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.27 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Min:

    16 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    6.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    7.62 mm

AD712JN Frequently Asked Questions (FAQs)

  • The AD7124JN requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7124JN's analog-to-digital conversion, it is essential to understand the device's analog input range, gain, and offset. The user should select the appropriate gain and offset settings based on the application's requirements. Additionally, the user should ensure that the analog input signal is within the device's input range and that the signal is properly filtered and buffered.
  • The recommended power-up sequence for the AD7124JN is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). The user should ensure that the power supplies are stable and within the recommended operating range before applying the clock signal.
  • To troubleshoot common issues with the AD7124JN, the user should first verify that the device is properly powered and configured. The user should then check the analog input signal and ensure that it is within the device's input range. If the issue persists, the user should check the device's digital output and verify that it is properly connected to the microcontroller or other digital device.
  • The AD7124JN has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, the user should ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range. The user should also ensure that the device is not exposed to excessive thermal stress or mechanical stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD712JN Overview

Use the download button to access the AD712JN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD712, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
