AD712JNZ - Analog Devices

Description: Hi Speed Dual BiFET Amp AD712JNZ Analog Devices AD712JNZ Dual Operational Amplifier, 4MHz, 8-Pin PDIP

Download AD712JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

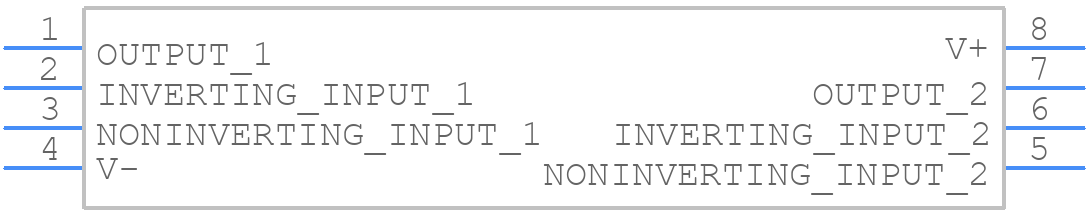

AD712JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD712JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-(N-8)
click to zoom
3D Models
AD712JNZ - Analog Devices - 3D model - Dual-In-Line Packages - PDIP-(N-8)
click to zoom

AD712JNZ Details

  • Manufacturer Part Number:

    AD712JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000025 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0006 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Min:

    16 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    6.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    7.62 mm
